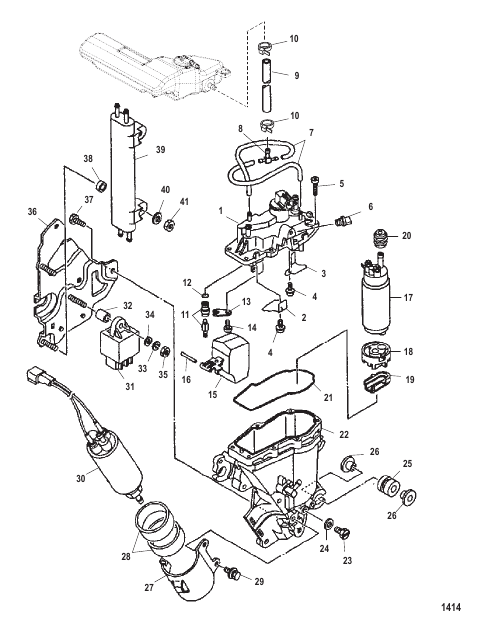

Vapor Separator
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 888238T1 |
КРЫШКА В СБОРЕ [0T962846] & Below COVER ASSEMBLY [0T962846] & Below |
1 | discontinued |
| 1 | 888238T02 |
КРЫШКА В СБОРЕ [0T962847] & Up COVER ASSEMBLY [0T962847] & Up |
1 | discontinued |
| 10 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 11 | 888245 |
КОМПЛЕКТ ИГЛ / СЕДЕЛ NEEDLE/SEAT KIT |
1 | discontinued |
| 12 | 881318 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 13 | 881327 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 14 | 804120 |
ВИНТ (M4 x 8) SCREW (M4 x 8) |
1 | discontinued |
| 15 | 888244 |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 16 | 881321 |
ШТИФТ Поплавок PIN Float |
1 | discontinued |
| 17 | 888246T |
НАСОС Топливо [1B055687] & Below PUMP Fuel [1B055687] & Below |
1 | superseded |
| 17 | 888246T01 |
НАСОС Топливо [1B055688] & Up PUMP Fuel [1B055688] & Up |
1 | discontinued |
| 18 | 881323T |
ФИЛЬТР FILTER |
1 | discontinued |
| 19 | 881324 |
КРЫШКА COVER |
1 | discontinued |
| 2 | 888239 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 20 | 881322 |
ДЕМПФЕР [0T962846] & Below DAMPER [0T962846] & Below |
1 | discontinued |
| 20 | 881322002 |
ДЕМПФЕР [0T962847] & Up DAMPER [0T962847] & Up |
1 | superseded |
| 21 | 881325 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 22 | 888241T1 |
КОРПУС В СБОРЕ Паросепаратор BODY ASSEMBLY Vapor Seperator |
1 | |
| 23 | 888242 |
ПРОБКА Слив PLUG Drain |
1 | |
| 24 | 888243 |
ШАЙБА WASHER |
1 | discontinued |
| 25 | 888262 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | discontinued |
| 26 | 888263 |
ВТУЛКА BUSHING |
8 | discontinued |
| 27 | 888252 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 28 | 888253 |
ВТУЛКА BUSHING |
2 | discontinued |
| 29 | 888254 |
БОЛТ BOLT |
2 | discontinued |
| 3 | 8882391 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 30 | 888251T |
НАСОС Топливо [1B230362] & Below PUMP Fuel [1B230362] & Below |
1 | superseded |
| 30 | 888251T01 |
НАСОС Топливо [1B230363] & Up PUMP Fuel [1B230363] & Up |
1 | superseded |
| 31 | 881350T |
РЕЛЕ RELAY |
1 | discontinued |
| 32 | 888256 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 33 | 881525 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 34 | 888257 |
ШАЙБА WASHER |
1 | discontinued |
| 35 | 888264 |
ГАЙКА NUT |
1 | discontinued |
| 36 | 888255T |
ПЛАСТИНА PLATE |
1 | discontinued |
| 37 | 888261 |
БОЛТ BOLT |
3 | discontinued |
| 38 | 888260 |
ВТУЛКА COLLAR |
2 | discontinued |
| 39 | 888259T |
ОХЛАДИТЕЛЬ COOLER |
1 | discontinued |
| 4 | 888240 |
ВИНТ SCREW |
2 | discontinued |
| 40 | 881533 |
ШАЙБА WASHER |
2 | discontinued |
| 41 | 888258 |
ГАЙКА NUT |
2 | discontinued |
| 5 | 881326 |
ВИНТ (M4 x 16) SCREW (M4 x 16) |
7 | discontinued |
| 6 | 888265 |
ПРОБКА PLUG |
1 | discontinued |
| 7 | 888248 |
РУКАВ HOSE |
2 | |
| 8 | 888247 |
ФИТИНГ Тройник FITTING Tee |
1 | discontinued |
| 9 | 888249 |
РУКАВ HOSE |
1 | discontinued |
