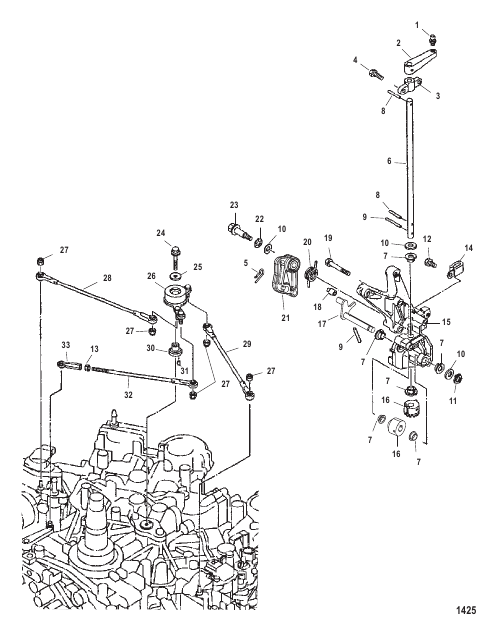

Throttle Linkage
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 84305M |
СОЕДИНЕНИЕ JOINT |
1 | discontinued |
| 10 | 84974M |
ШАЙБА WASHER |
3 | discontinued |
| 11 | 888383 |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 12 | 8255012 |
БОЛТ BOLT |
2 | discontinued |
| 13 | 82388M |
ГАЙКА (M5) NUT (M5) |
1 | |
| 14 | 8145521 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 15 | 888388T |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 16 | 888384 |
ПЕРЕДАЧА GEAR |
2 | discontinued |
| 17 | 888452 |
РЫЧАГ Управление газом LEVER Throttle Control |
1 | discontinued |
| 18 | 8813321 |
ВТУЛКА BUSHING |
1 | |
| 19 | 887827 |
БОЛТ BOLT |
5 | discontinued |
| 2 | 888387 |
РЫЧАГ Управление магнето LEVER Magneto Control |
1 | discontinued |
| 20 | 804343 |
ПРУЖИНА SPRING |
1 | discontinued |
| 21 | 888179 |
РЫЧАГ Управление газом LEVER Throttle Control |
1 | discontinued |
| 22 | 81868M |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 23 | 888389 |
БОЛТ BOLT |
1 | discontinued |
| 24 | 11561M |
БОЛТ BOLT |
1 | discontinued |
| 25 | 94524M |
ШАЙБА WASHER |
1 | discontinued |
| 26 | 888601 |
РЫЧАГ В СБОРЕ Педаль газа ARM ASSEMBLY Accelerator |
1 | discontinued |
| 27 | 888604 |
ГАЙКА NUT |
5 | discontinued |
| 28 | 888603 |
СОЕДИНИТЕЛЬ LINK |
1 | superseded |
| 29 | 8886031 |
ШТОК ROD |
1 | superseded |
| 3 | 83537M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 30 | 888602 |
ВТУЛКА BUSHING |
1 | discontinued |
| 31 | 82144M |
ШТИФТ PIN |
1 | discontinued |
| 32 | 888600 |
СТЕРЖЕНЬ ТЯГИ LINK ROD |
1 | superseded |
| 33 | 84100M |
ФИКСАТОР RETAINER |
1 | |
| 4 | 8257021 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | discontinued |
| 5 | 82053M |
ШТИФТ Штифт PIN Hair |
1 | |
| 6 | 888386 |
ВАЛ Управление газом SHAFT Throttle Control |
1 | discontinued |
| 7 | 892661A02 |
КОМПЛЕКТ ВТУЛОК BUSHING KIT |
1 | |
| 8 | 82149M |
ШТИФТ (18.5 мм) PIN (18.5 mm) |
2 | discontinued |
| 9 | 82151M |
ШТИФТ PIN |
2 | discontinued |
