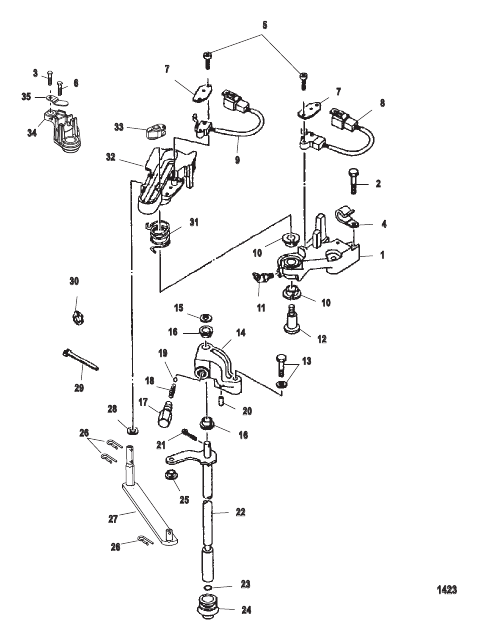

Shift Linkage
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 888373 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 10 | 81949M |
ВТУЛКА BUSHING |
2 | |
| 11 | 888374 |
ФИТИНГ Смазка FITTING Grease |
1 | discontinued |
| 12 | 888375 |
БОЛТ BOLT |
1 | discontinued |
| 13 | 8524742 |
БОЛТ BOLT |
1 | discontinued |
| 14 | 888382 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 15 | 8556821 |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 8879001 |
ВТУЛКА BUSHING |
2 | discontinued |
| 17 | 80635M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 18 | 82081M |
ПРУЖИНА SPRING |
1 | discontinued |
| 19 | 92659M |
ШАРИК BALL |
1 | discontinued |
| 2 | 850879 |
БОЛТ (M6 x 35) BOLT (M6 x 35) |
2 | discontinued |
| 20 | 82145M |
ШТИФТ PIN |
1 | discontinued |
| 21 | 82128M |
ШТИФТ PIN |
1 | discontinued |
| 22 | 888186A1 |
РУКОЯТКА ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ (XL) GEAR SHIFT HANDLE (XL) |
1 | discontinued |
| 22 | 888186A2 |
РУКОЯТКА ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ (XXL) GEAR SHIFT HANDLE (XXL) |
1 | discontinued |
| 23 | 8144961 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 24 | 8095501 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 25 | 888381 |
ВТУЛКА BUSHING |
1 | discontinued |
| 26 | 82053M |
ШТИФТ Штифт PIN Hair |
3 | |
| 27 | 888183A1 |
СОЕДИНИТЕЛЬ В СБОРЕ LINK ASSEMBLY |
1 | discontinued |
| 28 | 8149771 |
ШАЙБА WASHER |
1 | discontinued |
| 29 | 879650 |
ЗАЖИМ CLAMP |
1 | superseded |
| 3 | 888346 |
БОЛТ (30 мм) BOLT (30 mm) |
1 | discontinued |
| 30 | 8556861 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 31 | 888376 |
ПРУЖИНА SPRING |
1 | discontinued |
| 32 | 8883731 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 33 | 888182 |
ВТУЛКА BUSHING |
1 | discontinued |
| 34 | 887956 |
КРОНШТЕЙН Анкер [1B055687] & Below BRACKET Anchor [1B055687] & Below |
1 | superseded |
| 34 | 887956001 |
КРОНШТЕЙН Анкер [1B055688] & Up BRACKET Anchor [1B055688] & Up |
1 | discontinued |
| 35 | 887958 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 4 | 83577M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 5 | 888379 |
ВИНТ SCREW |
4 | discontinued |
| 6 | 8883461 |
БОЛТ (25 мм) BOLT (25 mm) |
1 | discontinued |
| 7 | 888378 |
ПЛАСТИНА PLATE |
2 | discontinued |
| 8 | 888377A2 |
ПЕРЕКЛЮЧАТЕЛЬ ПЕРЕДАЧ В СБОРЕ SHIFT SWITCH ASSEMBLY |
1 | discontinued |
| 9 | 888377A1 |
ПЕРЕКЛЮЧАТЕЛЬ НЕЙТРАЛИ В СБОРЕ NEUTRAL SWITCH ASSEMBLY |
1 | discontinued |
