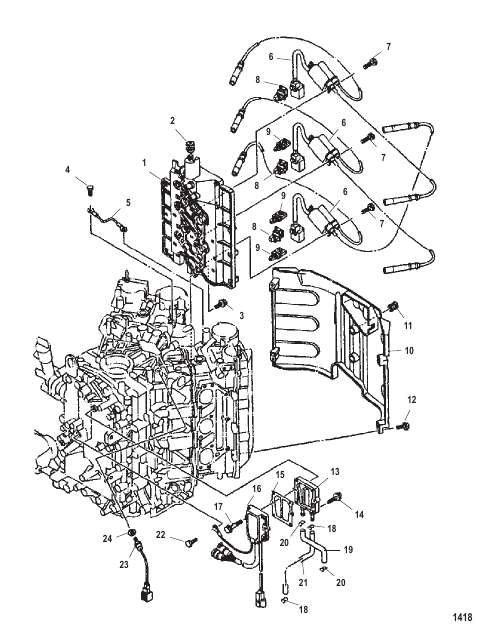

Coil Plate Assembly
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 888307T |
ПЛАСТИНА Катушка PLATE Coil |
1 | discontinued |
| 10 | 888312T |
КРЫШКА COVER |
1 | |
| 11 | 888304 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 12 | 888313 |
БОЛТ BOLT |
4 | discontinued |
| 13 | 888317 |
КРЫШКА COVER |
1 | discontinued |
| 14 | 888318 |
БОЛТ BOLT |
4 | discontinued |
| 15 | 888316 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 16 | 888315A1 |
ВЫПРЯМИТЕЛЬ/РЕГУЛЯТОР В СБОРЕ RECTIFIER/REGULATOR ASSEMBLY |
1 | superseded |
| 17 | 88348935 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
2 | superseded |
| 18 | 98974M |
ЗАЖИМ CLIP |
2 | discontinued |
| 19 | 888232 |
РУКАВ HOSE |
1 | discontinued |
| 2 | 97675M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 20 | 888233 |
ЗАЖИМ CLIP |
2 | discontinued |
| 21 | 888231 |
РУКАВ HOSE |
1 | discontinued |
| 22 | 804604 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | discontinued |
| 23 | 887809T |
ТЕРМОДАТЧИК THERMOSENSOR |
1 | discontinued |
| 24 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 3 | 888308 |
БОЛТ BOLT |
6 | discontinued |
| 4 | 804602 |
БОЛТ (M6 x 12) BOLT (M6 x 12) |
2 | discontinued |
| 5 | 888281 |
ПРОВОД ЗАЗЕМЛЕНИЯ GROUND WIRE |
1 | discontinued |
| 6 | 888309 |
КАТУШКА Зажигание COIL Ignition |
3 | discontinued |
| 7 | 8257021 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
6 | discontinued |
| 8 | 888310 |
ЗАЖИМ CLAMP |
3 | discontinued |
| 9 | 888311 |
ЗАЖИМ CLAMP |
3 | discontinued |
