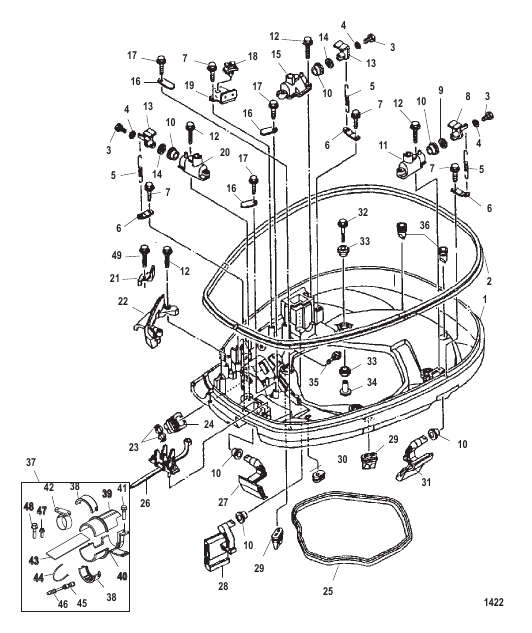

Bottom Cowl
Parts (55)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 888343T |
НИЖНИЙ КОЖУХ [1B055687] & Below BOTTOM COWL [1B055687] & Below |
1 | superseded |
| 1 | 888343T01 |
НИЖНИЙ КОЖУХ [1B055688] THRU [1B226999] BOTTOM COWL [1B055688] THRU [1B226999] |
1 | superseded |
| 1 | 888343T02 |
НИЖНИЙ КОЖУХ [1B227000] & Up BOTTOM COWL [1B227000] & Up |
1 | |
| 10 | 888362 |
ВТУЛКА BUSHING |
6 | discontinued |
| 11 | 888365 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 12 | 888346 |
БОЛТ (30 мм) BOLT (30 mm) |
8 | discontinued |
| 13 | 888364 |
РЫЧАГ LEVER |
2 | discontinued |
| 14 | 888363 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
2 | discontinued |
| 15 | 888359 |
ПЛАСТИНА [1B055687] & Below PLATE [1B055687] & Below |
1 | superseded |
| 15 | 888359A01 |
КОМПЛЕКТ ПЛАСТИН Передняя часть и правый борт [1B055688] & Up PLATE KIT Front and Starboard [1B055688] & Up |
1 | |
| 16 | 888356 |
ПЛАСТИНА PLATE |
3 | discontinued |
| 17 | 8883461 |
БОЛТ (25 мм) BOLT (25 mm) |
3 | discontinued |
| 18 | 804300 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 19 | 888358 |
КРОНШТЕЙН [1B055687] & Below BRACKET [1B055687] & Below |
1 | discontinued |
| 19 | 888358001 |
КРОНШТЕЙН [1B055688] & Up BRACKET [1B055688] & Up |
1 | discontinued |
| 2 | 888349 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 20 | 8883591 |
ПЛАСТИНА [1B055687] & Below PLATE [1B055687] & Below |
1 | discontinued |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Plate Kit (Part of 888359A01) [1B055688] & Up NOT SOLD SEPARATE Plate Kit (Part of 888359A01) [1B055688] & Up |
1 | |
| 21 | 888345 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 22 | 888344 |
КРОНШТЕЙН [1B226999] & Below BRACKET [1B226999] & Below |
1 | discontinued |
| 22 | 888344A02 |
КОМПЛЕКТ КРОНШТЕЙНА/УПЛОТНИТЕЛЕЙ [1B227000] & Up BRACKET/SEAL KIT [1B227000] & Up |
1 | discontinued |
| 23 | 879650 |
ЗАЖИМ CLAMP |
2 | superseded |
| 24 | 888353 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 25 | 8883491 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 26 | 881360 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 27 | 888360 |
РЫЧАГ LEVER |
1 | discontinued |
| 28 | 888361 |
РЫЧАГ LEVER |
1 | discontinued |
| 29 | 8883471 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 3 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
3 | |
| 30 | 888354 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 31 | 8883601 |
РЫЧАГ LEVER |
1 | discontinued |
| 32 | 888350 |
БОЛТ BOLT |
4 | discontinued |
| 33 | 888351 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
8 | discontinued |
| 34 | 888352 |
ВТУЛКА BUSHING |
4 | discontinued |
| 35 | 888355 |
ФИТИНГ FITTING |
1 | discontinued |
| 36 | 8883541 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 37 | 888481A1 |
КОМПЛЕКТ ПОДКЛЮЧЕНИЯ RIGGING KIT |
1 | |
| 38 | 888485 |
ВТУЛКА COLLAR |
2 | |
| 39 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Clamp-Upper NOT SOLD SEPARATE Clamp-Upper |
1 | |
| 4 | 804339 |
ШАЙБА WASHER |
3 | superseded |
| 40 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Clamp-Lower NOT SOLD SEPARATE Clamp-Lower |
1 | |
| 41 | 82129130 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
1 | |
| 42 | 815504240 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 43 | 859343 |
ПЕНОПЛАСТ FOAM |
1 | |
| 44 | 850181 |
ЛЕНТОЧНЫЙ ХОМУТ (11.750") TIE STRAP (11.750 Inches) |
4 | |
| 45 | 859747 |
МУФТА COUPLER |
1 | superseded |
| 46 | 859731 |
ФИТИНГ Переходник FITTING Adapter |
2 | superseded |
| 47 | 82130012 |
ВИНТ (M6 x 12) Positive Battery Cable SCREW (M6 x 12) Positive Battery Cable |
1 | |
| 48 | 81893420 |
ВИНТ (M8 x 20) Negative Battery Cable SCREW (M8 x 20) Negative Battery Cable |
1 | |
| 49 | 804267 |
ВИНТ SCREW |
1 | discontinued |
| 5 | 8041471 |
ПРУЖИНА SPRING |
3 | discontinued |
| 6 | 888366 |
КРЮК Пружина HOOK Spring |
3 | discontinued |
| 7 | 887807 |
БОЛТ BOLT |
4 | discontinued |
| 8 | 8883641 |
РЫЧАГ LEVER |
1 | discontinued |
| 9 | 888363 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
