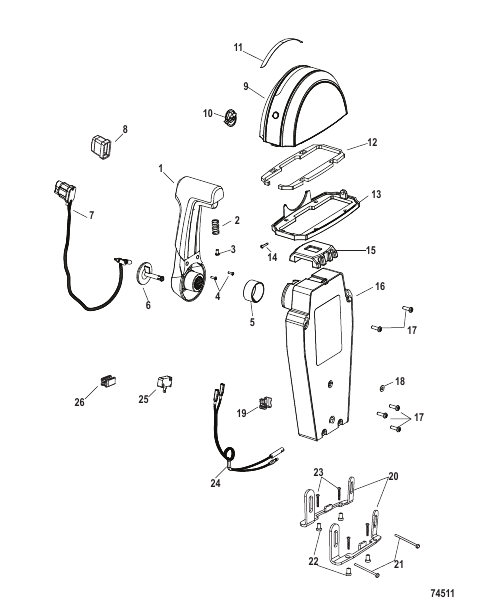

Remote Control-4500 Lockbar (Single) (Console)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M4507540 |
REMOTE CONTROL CONSOLE MOUNT Single, no Trim REMOTE CONTROL CONSOLE MOUNT Single, no Trim |
1 | |
| - | 8M4507538 |
REMOTE CONTROL CONSOLE MOUNT OB, Chrome REMOTE CONTROL CONSOLE MOUNT OB, Chrome |
1 | |
| - | 8M4507541 |
REMOTE CONTROL CONSOLE MOUNT OB, Black REMOTE CONTROL CONSOLE MOUNT OB, Black |
1 | |
| - | 8M4507539 |
REMOTE CONTROL CONSOLE MOUNT Single-MCM REMOTE CONTROL CONSOLE MOUNT Single-MCM |
1 | |
| 1 | 8M0169143 |
HANDLE ASSY Chrome w/Trim (Левый борт) (Без дифферента) HANDLE ASSY Chrome w/Trim Outboard |
1 | |
| 1 | 8M0169145 |
HANDLE ASSY MCM (Подвесной) HANDLE ASSY MCM Mercruiser |
1 | |
| 1 | 8M0169146 |
HANDLE ASSY Chrome, no Trim (MerCruiser) HANDLE ASSY Chrome, no Trim Non Trim |
1 | |
| 10 | 8M6001063 |
НАКЛЕЙКА ЗНАЧОК M DECAL M-ICON |
1 | |
| 11 | 8M0060478 |
НАКЛЕЙКА (F-N-R) DECAL (F-N-R) |
1 | |
| 12 | 8M0059718 |
ПРОКЛАДКА Базовая консоль, одинарная GASKET Base Console Single |
1 | |
| 13 | 8M0188503 |
BASE ASSY Chrome BASE ASSY Chrome |
1 | |
| 14 | 8M0060453 |
ВИНТ (M4 x 8 ЦИЛ. СКРУГЛ. ГОЛ.) SCREW (M4 X 8 PAN HD) |
1 | |
| 15 | 8M0082645 |
ПРОСТАВКА Крышка, одинарная, дистанционного управления SPACER Cover, Remote Control Single |
1 | |
| 16 | 8M0169148 |
CONTROL MODULE Console CONTROL MODULE Console |
1 | |
| 17 | 824831 |
ВИНТ (№10-32 x 0.625) SCREW (#10-32 x .625) |
5 | |
| 18 | 24676 |
ШАЙБА (0.200 x 0.440 x 0.032) WASHER (.200 x .440 x .032) |
1 | |
| 19 | 822198 |
ПЕРЕКЛЮЧАТЕЛЬ Neutral Satety SWITCH Neutral Satety |
1 | |
| 2 | 16924 |
ПРУЖИНА SPRING |
1 | |
| 20 | 8M0059444 |
КРОНШТЕЙН BRACKET |
2 | |
| 21 | 89044 |
ВИНТ (№10-32 x 2.25) SCREW (#10-32 x 2.25) |
2 | |
| 22 | 42290 |
ГНЕЗДОВАЯ ГАЙКА (№10-32) WELL NUT (#10-32) |
4 | |
| 23 | 66687 |
ВИНТ (№10-32 x 1.50) SCREW (#10-32 x 1.50) |
4 | |
| 24 | 883718A01 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | |
| 25 | 891907001 |
ПРОСТАВКА Одинарный кабель SPACER Cable Single |
AR | |
| 26 | 891907002 |
ПРОСТАВКА Двойной кабель SPACER Cable Dual |
AR | |
| 3 | 8M0099569 |
ВИНТ (M4 x 8) SCREW (M4 x 8) |
1 | |
| 4 | 858686 |
ВИНТ (№8) SCREW (#8) |
1 | |
| 5 | 859016 |
ВТУЛКА Рукоятка BUSHING Handle |
1 | |
| 6 | 8M0169149 |
BUTTON ASSY Throttle Only Только дроссельная заслонка BUTTON ASSY Throttle Only |
1 | |
| 7 | 8M0191699 |
TRIM SWITCH ASSY OB Перевозка (MerCruiser) TRIM SWITCH ASSY OB Outboard with Trim |
1 | |
| 7 | 8M0191700 |
TRIM SWITCH ASSY MCM Mercruiser with Trim TRIM SWITCH ASSY MCM Mercruiser with Trim |
1 | |
| 8 | 8M0086976 |
ПРОБКА Рукоятка – дистанционное управление For Non-Trim PLUG Handle - Remote Control For Non-Trim |
1 | |
| 9 | 8M0188504 |
COVER ASSY Chrome COVER ASSY Chrome |
1 | |
| 9 | 8M0188506 |
COVER ASSY Black COVER ASSY Black |
1 |
