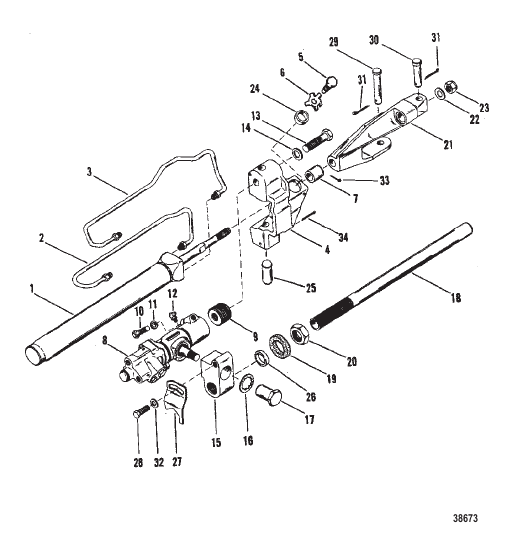

POWER STEERING COMPONENTS (OLD DESIGN)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 57969A12 |
ЦИЛИНДР В СБОРЕ Усилитель (25-58224A1 SEAL REPAIR KIT) CYLINDER ASSEMBLY Booster (25-58224A1 SEAL REPAIR KIT) |
1 | discontinued |
| 1 1 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 10 | 37612 |
ВИНТ (0.375-16 x 1.250) SCREW (.375-16 x 1.250) |
1 | |
| 12 | 67305 |
ФИТИНГ Смазка FITTING Grease |
1 | discontinued |
| 13 | 88281 |
ВИНТ (0.500-20 x 1.750) SCREW (.500-20 x 1.750) |
1 | discontinued |
| 14 | 20959 |
ШАЙБА WASHER |
1 | |
| 15 | 88285 |
ПЕРЕХОДНИК ADAPTER |
1 | discontinued |
| 16 | 76629 |
СТОПОРНАЯ ШАЙБА Внутренние зубья (0.750) LOCKWASHER Internal Tooth (.750) |
1 | superseded |
| 17 | 55111 |
ГАЙКА NUT |
1 | discontinued |
| 18 | 96511A1 |
ТРУБА В СБОРЕ Рулевой механизм TUBE ASSEMBLY Steering |
1 | superseded |
| 19 | 88287 |
НАПРАВЛЯЮЩАЯ GUIDE |
1 | discontinued |
| 2 | 92054 |
ТРУБА Extending TUBE Extending |
1 | |
| 20 | 32882 |
ГАЙКА (0.875-14) NUT (.875-14) |
1 | |
| 21 | 95848A1 |
ВИЛКА В СБОРЕ CLEVIS ASSEMBLY |
1 | discontinued |
| 22 | 20086 |
ШАЙБА (0.390 x 0.620 x 0.060) WASHER (.390 x .620 x .060) |
1 | |
| 23 | 53300 |
ГАЙКА (.375-24) NUT (.375-24) |
1 | discontinued |
| 24 | 95803 |
ВТУЛКА BUSHING |
2 | |
| 25 | 88283 |
ШТИФТ Стопор PIN Retaining |
2 | discontinued |
| 26 | 88286 |
ВТУЛКА BUSHING |
1 | discontinued |
| 27 | 92766 |
ЗАМОК LOCK |
1 | discontinued |
| 28 | 41209 |
ВИНТ SCREW |
1 | discontinued |
| 29 | 89229 |
ШТИФТ Вилка PIN Clevis |
1 | |
| 3 | 92055 |
ТРУБА Retracting TUBE Retracting |
1 | |
| 30 | 52798 |
ШТИФТ Вилка PIN Clevis |
1 | |
| 31 | 46950 |
ШПЛИНТ COTTER PIN |
2 | |
| 32 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
1 | |
| 33 | 34212 |
ШПЛИНТ COTTER PIN |
1 | superseded |
| 34 | 806034A2 |
ПРИВОД В СБОРЕ Рулевой механизм с усилителем ACTUATOR ASSEMBLY Power Steering |
1 | superseded |
| 4 | 94953A1 |
КРОНШТЕЙН В СБОРЕ BRACKET ASSEMBLY |
1 | discontinued |
| 5 | 42253 |
БОЛТ BOLT |
2 | superseded |
| 6 | 42254 |
ШАЙБА WASHER |
2 | |
| 7 | 88282 |
РУКАВ SLEEVE |
1 | discontinued |
| 8 | 816458A1 |
КЛАПАН В СБОРЕ (25-58226A1 SEAL REPAIR KIT) VALVE ASSEMBLY (25-58226A1 SEAL REPAIR KIT) |
1 | discontinued |
| 9 | 88280 |
ПЕРЕХОДНИК ADAPTER |
1 | discontinued |
