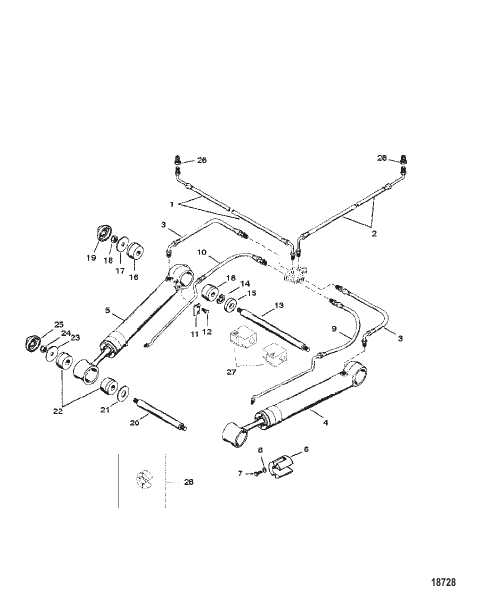

TRIM CYLINDERS AND HYDRAULIC HOSES
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| -- | 87399A2 |
КОМПЛЕКТ ДЛЯ КАПИТАЛЬНОГО РЕМОНТА OVERHAUL KIT |
2 | |
| -- | 87400A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
2 | |
| 1 | 95858 |
РУКАВ Черный Hydraulic (CONNECTOR TO PUMP) HOSE Black Hydraulic (CONNECTOR TO PUMP) |
1 | superseded |
| 10 | 99903 |
РУКАВ Цилиндр системы дифферента Port HOSE Trim Cylinder Port |
1 | superseded |
| 11 | 85060 |
ПЛАСТИНА PLATE |
2 | |
| 12 | 85486 |
ВИНТ (0.250-20 x 0.380), нержавеющая сталь SCREW (.250-20 x .380) Stainless Steel |
4 | |
| 13 | 44167A1 |
ШТИФТ PIN |
1 | |
| 14 | 805272 |
КОЛЬЦО Стопор RING Retaining |
2 | |
| 15 | 44164 |
ШАЙБА WASHER |
2 | |
| 16 | 44165 |
ВТУЛКА BUSHING |
4 | superseded |
| 17 | 44163 |
ШАЙБА (0.450 x 1.75 x 0.12) WASHER (.450 x 1.75 x .12) |
2 | |
| 18 | 134391 |
ГАЙКА (0.4375-20) NUT (.4375-20) |
2 | superseded |
| 19 | 14842 |
ПРОБКА CAP |
2 | |
| 2 | 95859 |
РУКАВ Серый Hydraulic (CONNECTOR TO PUMP) HOSE Gray Hydraulic (CONNECTOR TO PUMP) |
1 | superseded |
| 20 | 44166 |
ШТИФТ PIN |
1 | |
| 21 | 44164 |
ШАЙБА WASHER |
2 | |
| 22 | 44165 |
ВТУЛКА BUSHING |
4 | superseded |
| 23 | 44163 |
ШАЙБА (0.450 x 1.75 x 0.12) WASHER (.450 x 1.75 x .12) |
2 | |
| 24 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
2 | superseded |
| 25 | 14842 |
ПРОБКА CAP |
2 | |
| 26 | 805118 |
ФИТИНГ (UNS 0.4375 x инвертированная свеча зажигания 0.4375) Without Screen FITTING (.4375 UNS x .4375 Inverted Flare) Without Screen |
2 | |
| 26 | 808727 |
СОЕДИНИТЕЛЬ (UNF 0.50-20 к инвертированной свече зажигания 4375-24) With Screen CONNECTOR (.50-20 UNF To .4375-24 Inverted Flare) With Screen |
2 | |
| 27 | NA |
NOT AVAILABLE Not sold with this model NOT AVAILABLE Not sold with this model |
0 | |
| 28 | NA |
NOT AVAILABLE Not sold with this model NOT AVAILABLE Not sold with this model |
0 | |
| 3 | 99904 |
РУКАВ (TRIM CYLINDER TO CONNECTOR) HOSE (TRIM CYLINDER TO CONNECTOR) |
2 | superseded |
| 4 | 98704A17 |
ЦИЛИНДР СИСТЕМЫ ДИФФЕРЕНТА Starboard TRIM CYLINDER Starboard |
1 | superseded |
| 5 | 98703A17 |
ЦИЛИНДР СИСТЕМЫ ДИФФЕРЕНТА Port TRIM CYLINDER Port |
1 | superseded |
| 6 | 806190A1 |
АНОД В СБОРЕ ANODE ASSEMBLY |
2 | superseded |
| 7 | 806290 |
ВИНТ (№10-32 x 0.625) SCREW (#10-32 x .625) |
4 | |
| 8 | 69432 |
СТОПОРНАЯ ШАЙБА Внешний (№10) LOCKWASHER External (#10) |
4 | |
| 9 | 99902 |
РУКАВ Цилиндр системы дифферента Starboard HOSE Trim Cylinder Starboard |
1 | superseded |
