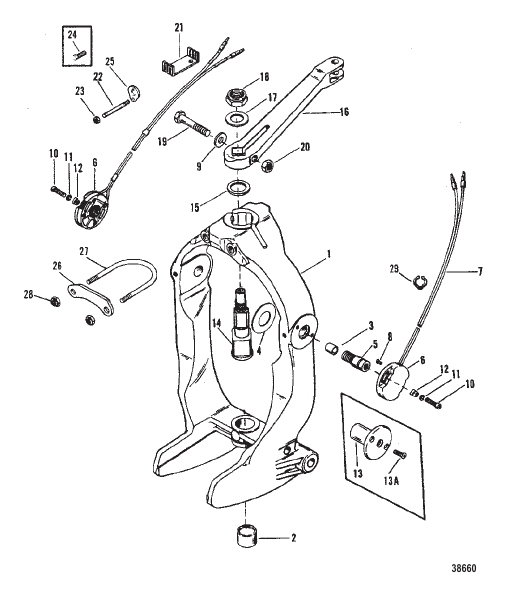

GIMBAL RING AND STEERING LEVER
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 44211A2 |
КОЛЬЦО КАРДАНА В СБОРЕ For Use With Trim Senders GLMBAL RING ASSEMBLY For Use With Trim Senders |
1 | superseded |
| 1 | 822374A3 |
КОЛЬЦО КАРДАНА В СБОРЕ For Use Without Trim Senders GIMBAL RING ASSEMBLY For Use Without Trim Senders |
1 | superseded |
| 10 | 37978 |
ВИНТ (№10-32 x 0.750), нержавеющая сталь For Use With Trim Senders SCREW (#10-32 x .750) Stainless Steel For Use With Trim Senders |
4 | |
| 11 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь For Use With Trim Senders LOCKWASHER (#10) Stainless Steel For Use With Trim Senders |
4 | |
| 12 | 57008 |
ФИКСАТОР For Use With Trim Senders RETAINER For Use With Trim Senders |
4 | |
| 13 | 821997 |
ШТИФТ Шарнирный For Use Without Trim Senders PIN Hinge For Use Without Trim Senders |
2 | |
| 13A | 821579 |
ВИНТ (№10-24 x 0.500) For Use Without Trim Senders SCREW (#10-24 x .500) For Use Without Trim Senders |
4 | |
| 14 | 98230A1 |
ВАЛ В СБОРЕ SHAFT ASSEMBLY |
1 | |
| 15 | 98548 |
ШАЙБА (1.125) WASHER (1.125 ) |
1 | |
| 16 | 98262A1 |
РЫЧАГ В СБОРЕ LEVER ASSEMBLY |
1 | superseded |
| 17 | 85344 |
ШАЙБА (Внутренний диаметр 0.750) WASHER (.750 Inside Diameter) |
1 | |
| 18 | 25599 |
ГАЙКА (.750-16) NUT (.750-16) |
1 | superseded |
| 19 | 32995 |
ВИНТ (0.437-20 x 2.00) SCREW (.437-20 x 2.00) |
1 | superseded |
| 2 | 99352 |
ПОДШИПНИК For Use With Trim Senders BEARING For Use With Trim Senders |
1 | superseded |
| 2 | 847638 |
ВТУЛКА For Use Without Trim Senders BUSHING For Use Without Trim Senders |
1 | |
| 20 | 98533 |
ГАЙКА (0.437-20) NUT (.437-20) |
1 | superseded |
| 21 | 79146 |
ФИКСАТОР RETAINER |
1 | |
| 22 | 12097 |
ШПИЛЬКА (0.250-20/0.250-28 x 1.01) STUD (.250-20/.250-28 x 1.01) |
1 | superseded |
| 23 | 13438 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 24 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь (NEW DESIGN) SCREW (.250-20 x .620) Stainless Steel (NEW DESIGN) |
1 | |
| 25 | 12078 |
ЗАЖИМ CLAMP |
1 | |
| 26 | 816510T |
КРОНШТЕЙН BRACKET |
1 | |
| 27 | 805164 |
U-ОБРАЗНЫЙ БОЛТ U BOLT |
1 | |
| 28 | 134371 |
ГАЙКА (.375-24) NUT (.375-24) |
2 | superseded |
| 29 | 818557 |
ЗАЖИМ CLAMP |
1 | |
| 3 | 847637 |
ВТУЛКА For Use With Trim Senders BUSHING For Use With Trim Senders |
2 | |
| 4 | 41721 |
ШАЙБА For Use With Trim Senders WASHER For Use With Trim Senders |
2 | |
| 4 | 41721 |
ШАЙБА For Use Without Trim Senders WASHER For Use Without Trim Senders |
2 | |
| 5 | 86801 |
ВИНТ Шарнирный болт For Use With Trim Senders SCREW Hinge Pin For Use With Trim Senders |
2 | |
| 6 | 64947 |
ДАТЧИК For Use With Trim Senders (OLD DESIGN) SENDER For Use With Trim Senders (OLD DESIGN) |
1 | |
| 6 | 805320A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ For Use With Trim Senders SWITCH ASSEMBLY For Use With Trim Senders |
1 | superseded |
| 7 | 19216 |
ЖГУТ ПРОВОДОВ В СБОРЕ For Use With Trim Senders (OLD DESIGN) HARNESS ASSEMBLY For Use With Trim Senders (OLD DESIGN) |
1 | discontinued |
| 8 | 46942 |
ВИНТ (№6-20 x 0.3125) For Use With Trim Senders (OLD DESIGN) SCREW (#6-20 x .3125) For Use With Trim Senders (OLD DESIGN) |
2 | |
| 9 | 91964 |
ШАЙБА For Use With Trim Senders WASHER For Use With Trim Senders |
1 | superseded |
