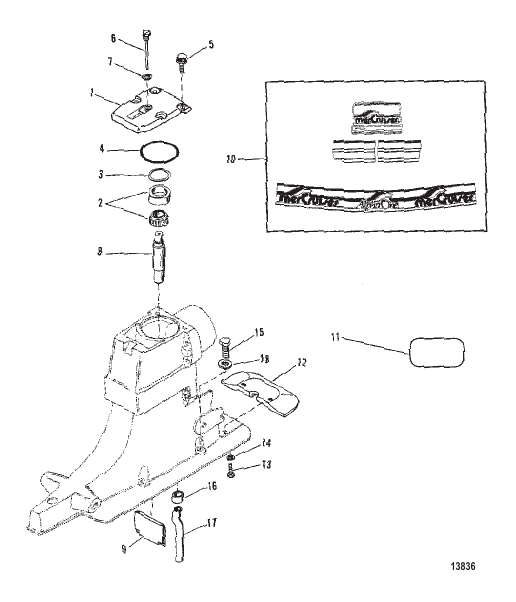

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
18312A1 |
TOP COVER With Dipstick Hole
|
1 |
disc.
|
| 1 |
18312A3 |
TOP COVER With Out Dipstick Hole
|
1 |
superseded
|
| 10 |
817387A91 |
DECAL SET
|
1 |
|
| 11 |
13722A11 |
DECAL SET Engine Model (2.5L/3.0L)
|
1 |
disc.
|
| 11 |
13722A13 |
DECAL SET Engine Model (4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L)
|
1 |
disc.
|
| 12 |
821629A1 |
ANODE ASSEMBLY
|
1 |
superseded
|
| 13 |
28668 |
SCREW (.250-20 x .875) Stainless Steel
|
2 |
|
| 14 |
78968 |
LOCKWASHER Internal (.250)
|
2 |
|
| 15 |
816601 |
SCREW (.437-20 x 1.500)
|
4 |
|
| 16 |
88397 |
SEAL
|
1 |
|
| 17 |
814384 |
TUBE Water
|
1 |
superseded
|
| 18 |
45176 |
WASHER (.453 x .812 x .105) Stainless Steel
|
4 |
|
| 19 |
88397A1 |
SEAL KIT Driveshaft Housing
|
1 |
|
| 2 |
61100A1 |
BEARING ASSEMBLY
|
1 |
|
| 3 |
45691A1 |
SHIM
|
AR |
|
| 4 |
32546 |
O-RING
|
1 |
|
| 5 |
98794 |
SCREW (.375-16 x 1.00)
|
4 |
superseded
|
| 6 |
816610A1 |
DIPSTICK ASSEMBLY (Old Design)
|
1 |
superseded
|
| 7 |
19183 |
WASHER Fiber (Old Design)
|
1 |
superseded
|
| 8 |
557961 |
DRIVESHAFT Upper
|
1 |
superseded
|
| 9 |
815932 |
FILLER WALL
|
1 |
|
