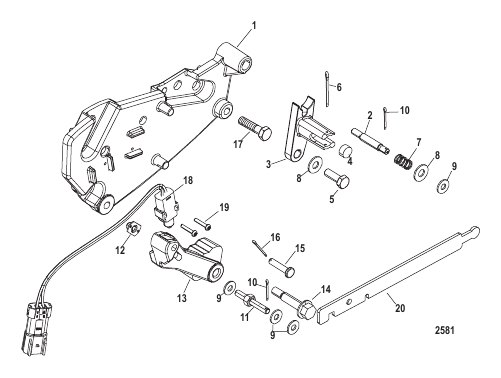

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
807962A15 |
BRACKET ASSEMBLY
|
1 |
|
| 10 |
210711 |
COTTER PIN
|
2 |
|
| 11 |
865393A02 |
STUD KIT (.250-28 x 1.90) Includes reference 10
|
1 |
|
| 12 |
63341 |
TEE NUT
|
1 |
|
| 13 |
863911A12 |
LEVER ASSEMBLY
|
1 |
|
| 14 |
865148 |
SHOULDER SCREW (.312-18 x 1.843) Stainless Steel
|
1 |
superseded
|
| 15 |
68402 |
PIN (.250 x 1.13) Clevis
|
1 |
|
| 16 |
210711 |
COTTER PIN
|
1 |
|
| 17 |
657461 |
SCREW AND LOCKWASHER (.250-20 x .625)
|
3 |
|
| 18 |
808009T11 |
SWITCH ASSEMBLY
|
1 |
|
| 19 |
865147T01 |
SCREW (#6-32 x .750) Stainless Steel
|
2 |
|
| 2 |
865154A02 |
STUD KIT (.250-20/.250-28 x 2.120) Includes reference 10
|
1 |
|
| 20 |
12427T |
TOOL Shift Adjust
|
1 |
|
| 3 |
865434A02 |
RETAINER KIT
|
1 |
|
| 4 |
98828 |
SPACER
|
1 |
superseded
|
| 5 |
53167T |
SCREW .312-18X .88
|
1 |
|
| 6 |
328571 |
COTTER PIN
|
1 |
superseded
|
| 7 |
98880 |
SPRING
|
1 |
superseded
|
| 8 |
56720 |
WASHER (.330 x .750 x .060) Stainless Steel
|
1 |
|
| 9 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
3 |
|
