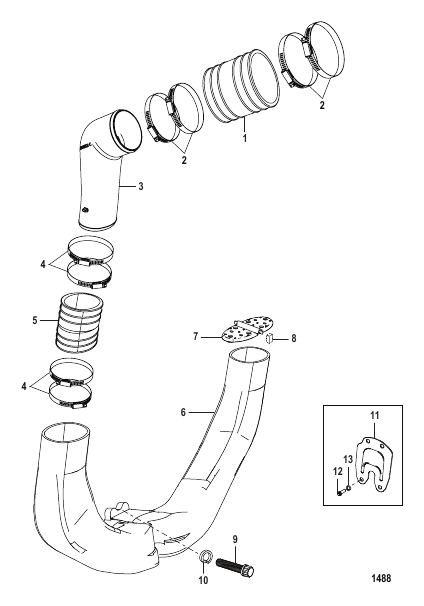

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
44348001 |
TUBE Exhaust
|
2 |
superseded
|
| 10 |
41471 |
LOCKWASHER (.375)
|
4 |
|
| 11 |
861776A2 |
PLATE KIT Through Transom Exhaust
|
1 |
|
| 12 |
98794 |
SCREW (.375-16 x 1.00) Through Transom Exhaust
|
4 |
superseded
|
| 13 |
41471 |
LOCKWASHER (.375) Through Transom Exhaust
|
4 |
|
| 2 |
815504272 |
CLAMP Worm Gear
|
8 |
|
| 3 |
865951A01 |
ELBOW KIT Intermediate Exhaust Without Risers
|
1 |
|
| 3 |
866004A01 |
ELBOW KIT Intermediate Exhaust (Use with 3 Inch Riser Kit)
|
1 |
|
| 3 |
866005A01 |
ELBOW KIT Intermediate Exhaust (Use with 6 Inch Riser Kit)
|
1 |
|
| 4 |
815504272 |
CLAMP Worm Gear
|
8 |
|
| 5 |
14358001 |
TUBE Exhaust
|
2 |
superseded
|
| 6 |
807130A4 |
PIPE Exhaust
|
1 |
superseded
|
| 7 |
807166A1 |
SHUTTER ASSEMBLY Water
|
2 |
|
| 8 |
807167 |
GROMMET
|
4 |
superseded
|
| 9 |
58640 |
SCREW (.375-16 x 1.25)
|
4 |
superseded
|
| NS |
8M0074364 |
COVER Hose Clamp Hose Clamp
|
AR |
|
