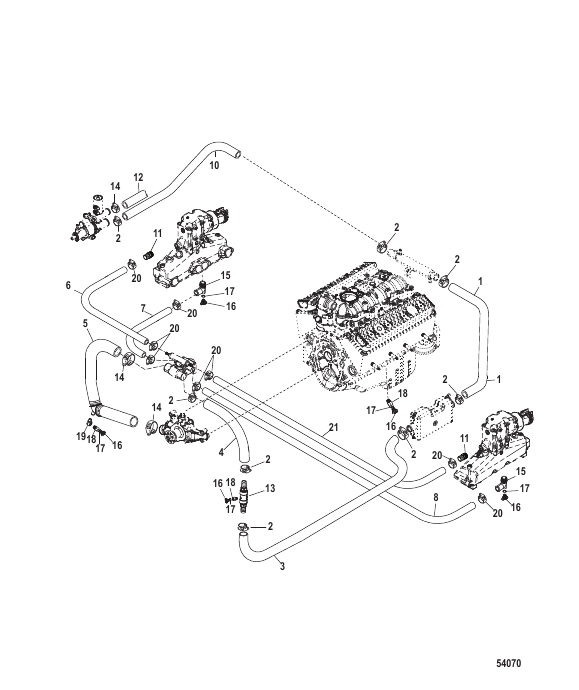

| # | Part Number | Description | Qty | Status |
|---|
| - |
863208A3 |
RELIEF VALVE KIT
|
1 |
disc.
|
| 1 |
8600891 |
HOSE Molded Power Steering to Fuel Cooler
|
1 |
|
| 10 |
863611 |
HOSE Seawater Pump to Steering Cooler
|
1 |
|
| 11 |
866725 |
FITTING Straight (.750-14) Barb
|
2 |
|
| 12 |
866331 |
HOSE
|
1 |
|
| 13 |
862271A1 |
CHECK VALVE
|
1 |
|
| 14 |
815504232 |
CLAMP Worm Gear (2.50 Diameter)
|
5 |
|
| 15 |
862210A01 |
ELBOW KIT Drain
|
2 |
|
| 16 |
806608A02 |
PLUG ASSEMBLY (.500-13) Blue
|
2 |
superseded
|
| 17 |
26802 |
O-RING (.424 x .103)
|
2 |
|
| 18 |
860088 |
BUSHING
|
3 |
superseded
|
| 19 |
46982 |
FITTING (90 Degree)
|
1 |
|
| 2 |
815504224 |
CLAMP Worm Gear
|
10 |
|
| 20 |
815504216 |
CLAMP Worm Gear (1.56 Diameter)
|
4 |
|
| 21 |
864435 |
HOSE Themostat Housing to Port Elbow
|
1 |
|
| 3 |
864578 |
HOSE Drain Fitting to Check Valve
|
1 |
|
| 4 |
864579 |
HOSE Check Valve to Thermostat Housing
|
1 |
|
| 5 |
864703A1 |
HOSE Circulating Pump to Drain Elbow
|
1 |
|
| 6 |
864979 |
HOSE Cut into 2 Pieces 1-Port/1-Starboard
|
1 |
|
| 7 |
863459 |
HOSE Thermostat Housing to Starboard Manifold
|
1 |
|
| 8 |
863458 |
HOSE Thermostat Housing to Port Manifold
|
1 |
|
| 9 |
807371T1 |
COOLER Oil
|
1 |
|
