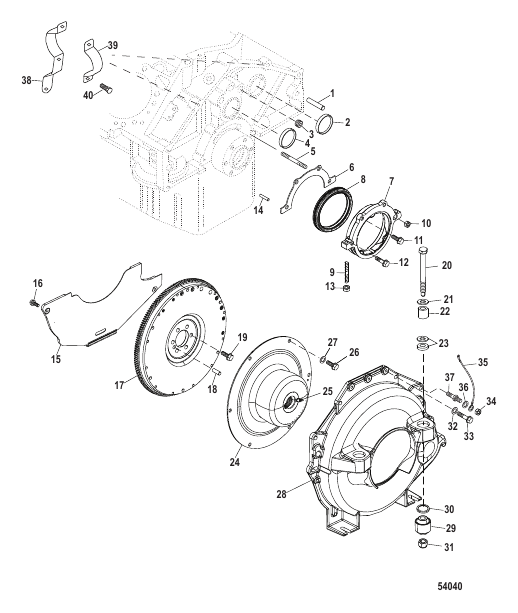

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0085932 |
LONGBLOCK ASSEMBLY
|
1 |
disc.
|
| 1 |
843379 |
PIN Dowel (.6206/.6211 x 1.20) Flywheel Housing Location
|
2 |
disc.
|
| 10 |
8167301 |
NUT
|
1 |
superseded
|
| 11 |
14242 |
BOLT (.250-20 x .875)
|
2 |
|
| 12 |
8M0064241 |
BOLT
|
1 |
|
| 13 |
11971 |
NUT (.312-18)
|
2 |
superseded
|
| 14 |
14263 |
PIN Dowel Oil Seal Housing Locating
|
1 |
|
| 15 |
807260A2 |
COVER KIT Flywheel
|
1 |
|
| 16 |
76596 |
SCREW (.250-20 x 1.250)
|
2 |
|
| 17 |
8M0047213 |
FLYWHEEL
|
1 |
|
| 18 |
43504 |
PIN Dowel Flywheel
|
2 |
|
| 19 |
845757 |
SCREW (.437-20 x 1.00)
|
6 |
superseded
|
| 2 |
34270 |
EXPANSION PLUG (1.625) Engine Core Hole
|
8 |
|
| 20 |
97934 |
SCREW (.500-20 x 5.370) Special
|
2 |
superseded
|
| 21 |
35777 |
WASHER (.5156 x 1.375 x .125) Aluminum
|
2 |
|
| 22 |
99299 |
SPACER (.520 x .870 x .630)
|
2 |
|
| 23 |
892619A01 |
SHIM KIT
|
1 |
|
| 24 |
861523A9 |
COUPLER ASSEMBLY Engine - Short Aluminum Hub
|
1 |
superseded
|
| 24 |
861523A11 |
COUPLER ASSEMBLY Engine Steel Hub
|
OPT |
|
| 25 |
49099 |
FITTING
|
2 |
superseded
|
| 26 |
863480 |
SCREW (.375-16 x 1.125)
|
6 |
|
| 27 |
20572 |
WASHER (.390 x .750 x .093)
|
6 |
|
| 28 |
865657A04 |
HOUSING ASSEMBLY Flywheel
|
1 |
|
| 29 |
865330A02 |
MOUNT KIT Rubber
|
1 |
|
| 3 |
48340 |
PLUG (.250-18 x .41) Oil Galley
|
4 |
superseded
|
| 30 |
99322 |
SPACER
|
2 |
|
| 31 |
863332 |
NUT (.500-20) Aluminum
|
2 |
|
| 32 |
20572 |
WASHER (.390 x .750 x .093)
|
1 |
|
| 33 |
37612 |
SCREW (.375-16 x 1.250)
|
1 |
|
| 33 |
32132 |
SCREW (.375-16 x 1.750)
|
1 |
|
| 34 |
32219 |
NUT (.375-16)
|
2 |
|
| 35 |
62826T06 |
CABLE ASSEMBLY Ground (13.00 Inches) Black
|
2 |
|
| 36 |
35048 |
LOCKWASHER (.375)
|
2 |
|
| 37 |
64066 |
STUD (.375-16 x 2.750) Special
|
2 |
superseded
|
| 38 |
8161961 |
BRACKET W/ Weldnuts Oil Cooler
|
2 |
disc.
|
| 39 |
56328A1 |
BRACKET Oil Cooler
|
2 |
|
| 4 |
72640 |
PLUG Expansion, Camshaft Bearing Hole
|
1 |
|
| 40 |
817505 |
SCREW (.250-20 x .620) Stainless Steel
|
4 |
|
| 5 |
14827 |
STUD (.250-20 x 2.180)
|
2 |
|
| 6 |
881715 |
GASKET Crankshaft Oil Seal Housing
|
1 |
|
| 7 |
852940 |
HOUSING ASSEMBLY With Studs Crankshaft Oil Seal
|
1 |
|
| 8 |
852941 |
SEAL Crankshaft Oil
|
1 |
|
| 9 |
11989 |
STUD (.312-18 x 1.6718)
|
2 |
|
| NS |
807296 |
NUT (.250-20)
|
2 |
|
