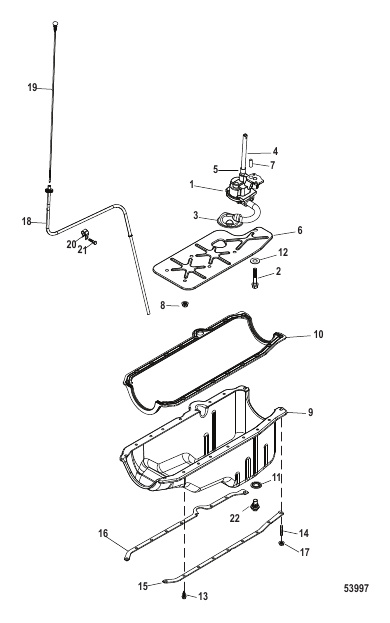

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
NSS |
NOT SOLD SEPARATE Pump/Screen Assembly
|
1 |
|
| 10 |
138651 |
GASKET Oil Pan
|
1 |
superseded
|
| 11 |
49955 |
GASKET Drain Screw
|
1 |
superseded
|
| 12 |
27339 |
WASHER
|
1 |
|
| 13 |
14070 |
SCREW (.250-20 x .625)
|
14 |
|
| 14 |
11989 |
STUD (.312-18 x 1.6718)
|
2 |
|
| 15 |
14257 |
REINFORCEMENT Port
|
1 |
|
| 16 |
14256 |
REINFORCEMENT Starboard
|
1 |
|
| 17 |
11971 |
NUT (.312-18)
|
4 |
superseded
|
| 18 |
862704A4 |
TUBE Dipstick
|
1 |
|
| 19 |
861942T9 |
DIPSTICK Oil Level
|
1 |
|
| 2 |
17346 |
SCREW Oil Pump
|
1 |
|
| 20 |
805625 |
CLIP Dipstick Tube
|
1 |
|
| 21 |
35366 |
SCREW
|
1 |
superseded
|
| 22 |
49956 |
SCREW Drain
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Screen, Oil Pump Pick Up
|
1 |
|
| 4 |
36184 |
SHAFT
|
1 |
|
| 5 |
36183 |
RETAINER
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Oil Deflector
|
1 |
|
| 7 |
843378 |
PIN Dowel Alignment, Oil Pump
|
1 |
|
| 8 |
845602 |
NUT (.375-16)
|
5 |
|
| 9 |
809910 |
PAN Oil
|
1 |
superseded
|
