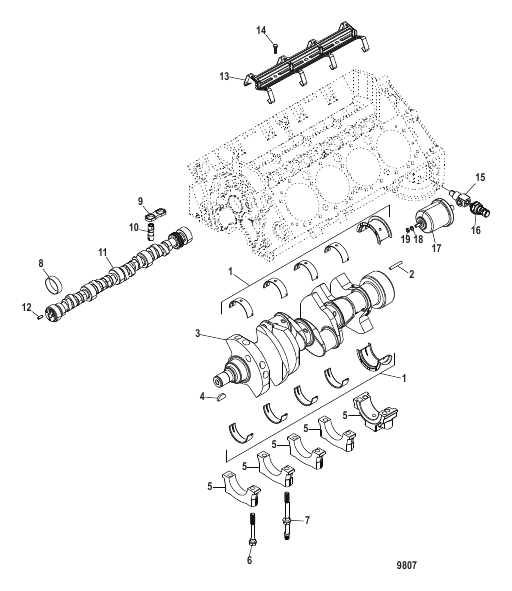

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0085932 |
LONGBLOCK ASSEMBLY
|
1 |
disc.
|
| - |
809825 |
RTV SILICONE (3 Ounce Tube) Metallic Blue
|
1 |
|
| - |
34227Q02 |
SEALING COMPOUND
|
1 |
disc.
|
| 1 |
849396 |
BEARING SET Standard - 5 Pair Standard
|
1 |
|
| 1 |
849395 |
BEARING SET (.001 Oversize) 5 Pair .001 Oversized
|
AR |
disc.
|
| 1 |
849394 |
BEARING SET (.001 Undersize) 5 Pair .001 Undersize
|
AR |
|
| 10 |
17340T1 |
LIFTER Roller
|
16 |
|
| 11 |
862562T1 |
CAMSHAFT
|
1 |
|
| 12 |
843378 |
PIN Dowel
|
1 |
|
| 13 |
811662 |
RETAINER Lifter Guide
|
1 |
|
| 14 |
34500 |
SCREW (.312-18 x .625)
|
3 |
|
| 15 |
864669 |
FITTING
|
1 |
|
| 16 |
881879T11 |
SENSOR Pressure (0 - 100 PSI) Oil
|
1 |
|
| 17 |
8M0068784 |
OIL PRESSURE SENDER
|
1 |
|
| 18 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
1 |
|
| 19 |
68219 |
NUT (#10-32) Stainless Steel
|
1 |
|
| 2 |
43504 |
PIN Dowel
|
2 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Crankshaft
|
1 |
|
| 4 |
862594 |
KEY Crankshaft
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Cap, Crankshaft Bearing
|
5 |
|
| 6 |
8625671 |
SCREW Crankshaft Bearing Cap
|
10 |
|
| 7 |
850090 |
STUD (.437-14/.375-16 x 3.360) Crankshaft Bearing Cap
|
5 |
|
| 8 |
85674 |
BEARING SET
|
1 |
|
| 9 |
17341T |
GUIDE Lifter
|
8 |
|
