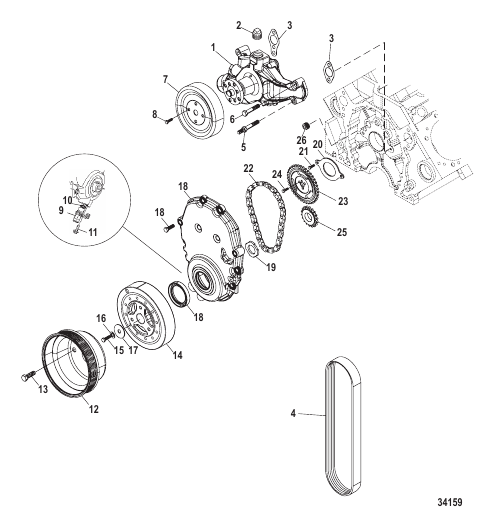

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8503991 |
PUMP ASSEMBLY Water
|
1 |
superseded
|
| 10 |
885192 |
O-RING
|
1 |
|
| 11 |
884018001 |
SCREW
|
1 |
|
| 12 |
807730T |
PULLEY Crankshaft
|
1 |
|
| 13 |
34352 |
SCREW (.375-24 x .875)
|
3 |
|
| 14 |
863397 |
HARMONIC BALANCER
|
1 |
|
| 15 |
8M2021674 |
SCREW (.437-20 x 2.50)
|
1 |
|
| 16 |
39131 |
LOCKWASHER (.437)
|
1 |
|
| 17 |
71458 |
WASHER
|
1 |
|
| 18 |
863396001 |
TIMING COVER ASSEMBLY Screws, Grommets, Oil Seal, and Gasket are Not Sold Seperately
|
1 |
superseded
|
| 19 |
863398 |
RELUCTOR WHEEL
|
1 |
|
| 2 |
428611 |
FITTING Pipe - Brass (.750-14)
|
1 |
superseded
|
| 20 |
845941 |
RETAINER Camshaft
|
1 |
|
| 21 |
845943 |
SCREW (.250-20 x .500)
|
2 |
|
| 22 |
17161T |
CHAIN Timing
|
1 |
superseded
|
| 23 |
8116591 |
SPROCKET Camshaft
|
1 |
|
| 24 |
845942 |
SCREW (.312-18 x .750)
|
3 |
superseded
|
| 25 |
17160 |
SPROCKET Crankshaft
|
1 |
superseded
|
| 26 |
816565 |
PLUG Cup (.468)
|
1 |
|
| 3 |
34897 |
GASKET Water Pump
|
2 |
|
| 4 |
865615Q03 |
BELT Serpentine
|
1 |
|
| 5 |
8M0076418 |
STUD
|
2 |
|
| 6 |
32132 |
SCREW (.375-16 x 1.750)
|
1 |
|
| 6 |
47688 |
SCREW (.375-16 x 2.750)
|
1 |
|
| 7 |
865047T |
PULLEY Water Pump
|
1 |
|
| 8 |
47277 |
SCREW (.312-24 x .750)
|
4 |
|
| 9 |
864297T01 |
SENSOR ASSEMBLY Crankshaft Position
|
1 |
|
