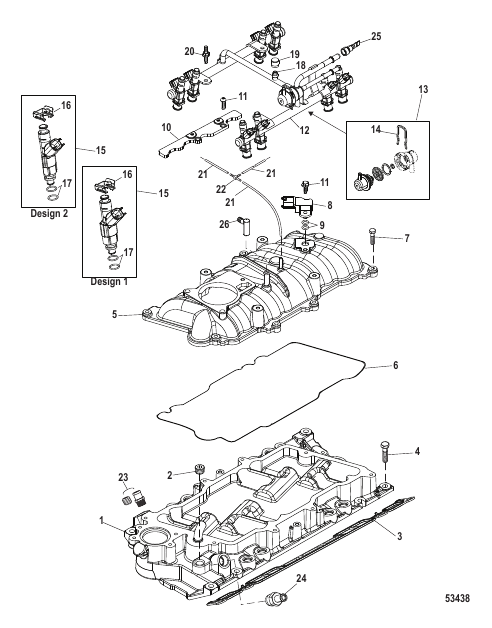

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
885164 |
MANIFOLD Intake Injector Bore I.D. 14 mm Design I
|
1 |
superseded
|
| 1 |
885164001 |
MANIFOLD Intake Injector Bore I.D. 15 mm Design II
|
1 |
superseded
|
| 10 |
NSS |
NOT SOLD SEPARATE Bracket - Component of 885164
|
1 |
|
| 11 |
885180 |
SCREW
|
4 |
|
| 12 |
8M0070997 |
FUEL RAIL ASSEMBLY
|
1 |
disc.
|
| 13 |
885174 |
REGULATOR Fuel Pressure
|
1 |
|
| 14 |
885175 |
CLIP Retaining
|
1 |
disc.
|
| 15 |
885176 |
INJECTOR Injector Bore I.D. 14 mm For Design I
|
8 |
|
| 15 |
879312003 |
INJECTOR Injector Bore I.D. 15 mm For Design II
|
8 |
|
| 16 |
885177 |
RETAINER Injector
|
1 |
superseded
|
| 17 |
892609 |
O-RING KIT Injector Bore I.D. 14 mm For Design I
|
1 |
disc.
|
| 17 |
8M0046869 |
O-RING KIT Injector Bore I.D. 15 mm For Design II
|
1 |
|
| 18 |
885178 |
VALVE Fuel Pressure Service
|
1 |
|
| 19 |
885179 |
CAP Fuel Pressure Sevice Valve
|
1 |
|
| 2 |
12524 |
PLUG (.375-18 x .475) Brass
|
1 |
|
| 20 |
885180 |
SCREW
|
4 |
|
| 21 |
8M0063567 |
HOSE 58.00 inch Bulk Cut to Appropriate Length
|
2 |
|
| 22 |
806689 |
FITTING Tee
|
1 |
|
| 23 |
845174 |
PLUG (.500-14 x .610) Brass
|
1 |
|
| 24 |
863426 |
FITTING EGR Plug (.875-14)
|
1 |
|
| 24 |
47841 |
FITTING (.375-18 x .500 )
|
1 |
superseded
|
| 25 |
8623601 |
PLUG Fuel Rail Block Off
|
1 |
|
| 26 |
863432T |
FITTING
|
1 |
|
| 3 |
807473A1 |
GASKET SET Intake Manifold
|
1 |
|
| 4 |
808010 |
SCREW (.312-18 x 1.375)
|
8 |
superseded
|
| 5 |
885167 |
MANIFOLD Intake Upper
|
1 |
superseded
|
| 6 |
885168 |
GASKET Intake Manifold
|
1 |
superseded
|
| 7 |
885166 |
SCREW
|
13 |
|
| 8 |
885165 |
SENSOR Temperature and Pressure
|
1 |
superseded
|
| 9 |
881733 |
SEAL
|
2 |
|
