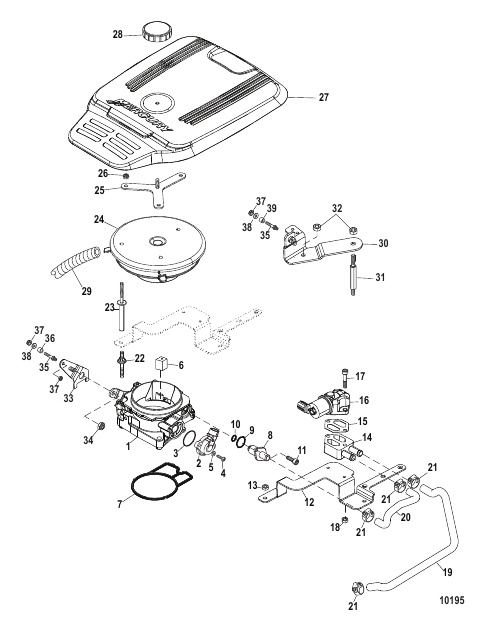

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0069801 |
THROTTLE BODY
|
1 |
superseded
|
| 10 |
808547 |
O-RING
|
1 |
|
| 11 |
4008612 |
SCREW (M4 x 12)
|
2 |
|
| 12 |
863647T |
BRACKET
|
1 |
|
| 13 |
401366 |
NUT (M6) Stainless Steel
|
1 |
|
| 14 |
863419A1 |
VALVE ASSEMBLY Air
|
1 |
|
| 15 |
863112 |
GASKET Air Valve
|
1 |
superseded
|
| 16 |
862998 |
VALVE Idle Air
|
1 |
superseded
|
| 17 |
F2192 |
SCREW (.250-20 x 1.750)
|
2 |
|
| 18 |
401366 |
NUT (M6) Stainless Steel
|
2 |
|
| 19 |
863429 |
HOSE
|
1 |
|
| 2 |
853678T |
SENSOR TPS
|
1 |
superseded
|
| 20 |
863428 |
HOSE
|
1 |
|
| 21 |
815504210 |
CLAMP Worm Gear Hose
|
4 |
|
| 22 |
885171 |
STUD
|
3 |
superseded
|
| 23 |
864338 |
STUD Special
|
3 |
|
| 24 |
863416T |
FLAME ARRESTOR
|
1 |
|
| 25 |
863423 |
BRACKET Cover Mount
|
1 |
|
| 26 |
401386 |
NUT (M6) Stainless Steel
|
3 |
|
| 27 |
879288T66 |
COVER Black Engine
|
1 |
|
| 28 |
863701 |
KNOB Engine Cover
|
1 |
|
| 29 |
1589424 |
HOSE (16.50 Inches Bulk) Breather
|
1 |
superseded
|
| 3 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 30 |
863420T |
BRACKET Throttle Anchor
|
1 |
|
| 31 |
863439 |
STUD
|
1 |
|
| 32 |
401366 |
NUT (M6) Stainless Steel
|
2 |
|
| 33 |
863417 |
BRACKET Throttle
|
1 |
|
| 34 |
8267138 |
NUT (.25-20)
|
1 |
|
| 35 |
97477A3 |
STUD KIT Throttle Anchor
|
2 |
|
| 36 |
NSS |
NOT SOLD SEPARATE Spacer
|
1 |
|
| 37 |
8267139 |
NUT (.250-28)
|
3 |
|
| 38 |
20533 |
WASHER
|
2 |
|
| 39 |
31866 |
SPACER (.256 x .313 x .625)
|
2 |
|
| 39 |
11284 |
SPACER (.62 Diameter)
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Screw Kit, TPS
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 6 |
863829 |
MUFFLER Intake Air Control
|
1 |
superseded
|
| 7 |
8M4502066 |
GASKET Throttle Body
|
1 |
superseded
|
| 8 |
862999A5 |
ADAPTER ASSEMBLY IAC
|
1 |
|
| 9 |
863006 |
O-RING (10.82 x 1.78)
|
1 |
|
| N.S. |
8M0074364 |
COVER Hose Clamp Hose Clamp End Cover
|
4 |
|
