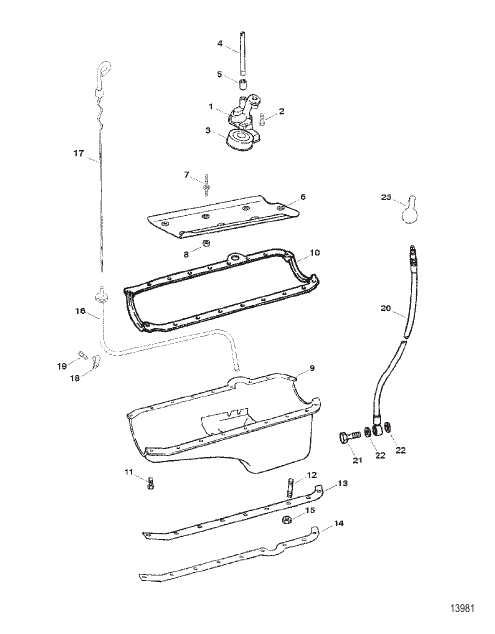

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A98 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| - | 864652A01 |
ЛОНГ-БЛОК В СБОРЕ LONGBLOCK ASSEMBLY |
1 | superseded |
| 1 | 8099071 |
НАСОС В СБОРЕ Oil PUMP ASSEMBLY Oil |
1 | superseded |
| 10 | 138651 |
ПРОКЛАДКА Oil Pan GASKET Oil Pan |
1 | superseded |
| 11 | 14070 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
14 | |
| 12 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
4 | |
| 13 | 14257 |
АРМАТУРА (PORT) REINFORCEMENT (PORT) |
1 | |
| 14 | 14256 |
АРМАТУРА (STARBOARD) REINFORCEMENT (STARBOARD) |
1 | |
| 15 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 16 | 860143A2 |
ТРУБА TUBE |
1 | superseded |
| 17 | 861942T7 |
ЩУП DIPSTICK |
1 | |
| 18 | 805625 |
ЗАЖИМ Dipstick Tube CLIP Dipstick Tube |
1 | |
| 19 | 35366 |
ВИНТ SCREW |
1 | superseded |
| 2 | 17346 |
ВИНТ SCREW |
1 | |
| 20 | 805505A1 |
ШЛАНГ В СБОРЕ HOSE ASSEMBLY |
1 | |
| 21 | 807497 |
БОЛТ (M12) BOLT (M12) |
1 | |
| 22 | 49955 |
ПРОКЛАДКА Drain GASKET Drain |
2 | superseded |
| 23 | 805524 |
ЗАЖИМ CLIP |
1 | |
| 3 | 809909 |
ЭКРАН Oil Pump Pick Up SCREEN Oil Pump Pick Up |
1 | |
| 4 | 36184 |
ВАЛ SHAFT |
1 | |
| 5 | 36183 |
ФИКСАТОР RETAINER |
1 | |
| 6 | 986021 |
ОТРАЖАТЕЛЬ Oil DEFLECTOR Oil |
1 | |
| 7 | 850090 |
ШПИЛЬКА (0.437-14/0.375-16 x 3.360) STUD (.437-14/.375-16 x 3.360) |
5 | |
| 8 | 845602 |
ГАЙКА (.375-16) NUT (.375-16) |
5 | |
| 9 | 809910 |
ПОДДОН Масло PAN Oil |
1 | superseded |
