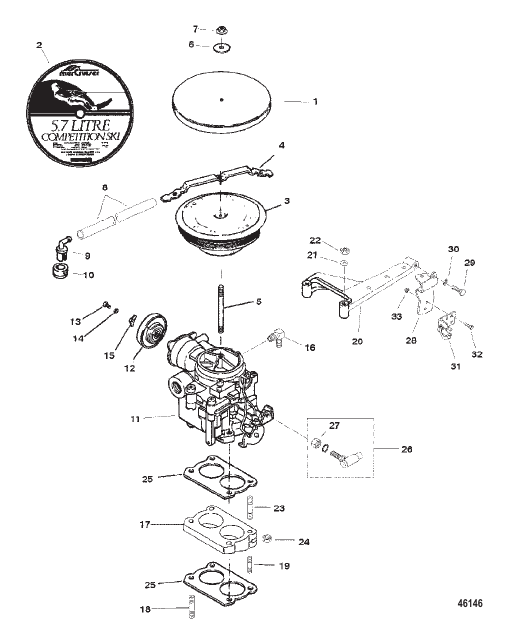

CARBURETOR/THROTTLE LINKAGE (2 BARREL)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 806871A96 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт CONTENTS INDICATED BY FOOTNOTE 16. GASKET SET Overhaul CONTENTS INDICATED BY FOOTNOTE 16. |
1 | |
| 1 | 14605T1 |
КРЫШКА Карбюратор COVER Carburetor |
1 | discontinued |
| 10 | 52188 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | superseded |
| 11 | 807312A1 |
КАРБЮРАТОР В СБОРЕ (SEE "CARBURETOR (MERCARB -2 BARREL)" FOR BREAKDOWN) CARBURETOR ASSEMBLY (SEE "CARBURETOR (MERCARB -2 BARREL)" FOR BREAKDOWN) |
1 | |
| 12 | 70125A1 |
КРЫШКА Choke COVER Choke |
1 | superseded |
| 13 | 33047 |
ВИНТ SCREW |
3 | discontinued |
| 14 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь LOCKWASHER (#8) Stainless Steel |
3 | |
| 15 | 33036 |
ФИКСАТОР RETAINER |
3 | discontinued |
| 16 | 54090 |
КОЛЕНЧАТЫЙ (90 DEG.) ELBOW (90 DEG.) |
1 | |
| 17 | 807265A1 |
КЛИН (INCLUDES GASKETS) WEDGE (INCLUDES GASKETS) |
1 | |
| 18 | 70237 |
ШПИЛЬКА (0.312-18/0.312-24 x 2.620) STUD (.312-18/.312-24 x 2.620) |
2 | |
| 19 | 63332 |
ШПИЛЬКА (0.312 x 1.2812) STUD (.312 x 1.2812) |
2 | |
| 2 | 81893949 |
НАКЛЕЙКА DECAL |
1 | discontinued |
| 20 | 805489T |
КРОНШТЕЙН BRACKET |
1 | |
| 21 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
4 | |
| 22 | 25594 |
ГАЙКА (0.9375-24) NUT (.9375-24) |
4 | superseded |
| 23 | 807975 |
ШПИЛЬКА (0.312 x 2.370) STUD (.312 x 2.370) |
2 | |
| 24 | 25594 |
ГАЙКА (0.9375-24) NUT (.9375-24) |
2 | superseded |
| 25 | 807982 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 26 | 807484 |
ШАРОВОЕ СОЕДИНЕНИЕ В СБОРЕ Быстрый сброс BALL JOINT ASSEMBLY Quick Release |
1 | |
| 27 | 20361 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 28 | 807494T |
КРОНШТЕЙН Throttle Bracket Attaching BRACKET Throttle Bracket Attaching |
1 | discontinued |
| 29 | 36137 |
ВИНТ (0.250-28 x 1.00) SCREW (.250-28 x 1.00) |
1 | |
| 3 | 805016A1 |
ПЛАМЕГАСИТЕЛЬ FLAME ARRESTOR |
1 | discontinued |
| 30 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 31 | 807485T |
КРОНШТЕЙН В СБОРЕ Throttle BRACKET ASSEMBLY Throttle |
1 | |
| 32 | 89766 |
ВИНТ (№10-32 x 0.620), нержавеющая сталь SCREW (#10-32 x .620) Stainless Steel |
2 | |
| 33 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
2 | superseded |
| 4 | 805313 |
ФИКСАТОР Breather Hose RETAINER Breather Hose |
1 | discontinued |
| 5 | 805295 |
ШПИЛЬКА (0.250-20/0.250-28 x специальный) STUD (.250-20/.250-28 x Special) |
1 | superseded |
| 6 | 20533 |
ШАЙБА WASHER |
1 | |
| 7 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 8 | 9331512 |
РУКАВ Breather HOSE Breather |
2 | superseded |
| 9 | 97850 |
КОЛЕНЧАТЫЙ 90 градусов Breather ELBOW 90 Degree Breather |
2 | superseded |
