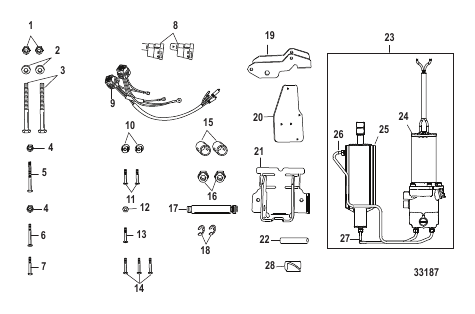

Power Trim Kit (850700A07)
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 850700A07 |
КОМПЛЕКТ УСИЛИТЕЛЯ ДИФФЕРЕНТА POWER TRIM KIT |
1 | discontinued |
| 1 | 82670910 |
ГАЙКА (0.312-18), нержавеющая сталь NUT (.312-18) Stainless Steel |
2 | |
| 10 | 850711 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 11 | 38601 |
ВИНТ (0.250-28 x 1.250) SCREW (.250-28 x 1.250) |
2 | |
| 12 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
1 | |
| 13 | 96138 |
ВИНТ (0.250-28 x 620) SCREW (.250-28 x .620) |
1 | discontinued |
| 14 | 817505 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
3 | |
| 15 | 850704 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 16 | 826709117 |
ГАЙКА (0.500-20), нержавеющая сталь NUT (.500-20) Stainless Steel |
2 | |
| 17 | 820618 |
ШТИФТ PIN |
1 | discontinued |
| 18 | 13194 |
КОЛЬЦО Стопор RING Retaining |
2 | |
| 19 | 850710T2 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 2 | 67981 |
ШАЙБА WASHER |
2 | |
| 20 | 850713T1 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 21 | 850712T2 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 22 | 8507021 |
ШТИФТ PIN |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Насос/двигатель в сборе NOT SOLD SEPARATE Pump/Motor Assembly |
1 | |
| 24 | 859725T1 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ PUMP/MOTOR ASSEMBLY |
1 | discontinued |
| 25 | 859004T |
ЦИЛИНДР В СБОРЕ CYLINDER ASSEMBLY |
1 | discontinued |
| 26 | 859647 |
ТРУБОПРОВОД LINE |
1 | discontinued |
| 27 | 859646 |
ТРУБОПРОВОД LINE |
1 | discontinued |
| 28 | 31757 |
ВТУЛКА BUSHING |
1 | discontinued |
| 3 | 814945 |
ВИНТ (0.312-18 x 3.500), нержавеющая сталь SCREW (.312-18 x 3.500) Stainless Steel |
2 | |
| 4 | 8267118 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | |
| 5 | 70732 |
ВИНТ (0.250-20 x 2.00) SCREW (.250-20 x 2.00) |
1 | |
| 6 | 817504 |
ВИНТ (0.250-20 x 1.500), нержавеющая сталь SCREW (.250-20 x 1.500) Stainless Steel |
1 | |
| 7 | 8472681 |
ВИНТ (0.250-28 x 1.00) SCREW (.250-28 x 1.00) |
1 | discontinued |
| 8 | 819509T |
РЕЛЕ RELAY |
2 | superseded |
| 9 | 819514A63 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 |
