| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8134271 |
SHOCK ROD KIT
|
1 |
superseded
|
| 10 |
813436 |
SCREW KIT (4 Per)
|
1 |
disc.
|
| 11 |
811671 |
DRIVESHAFT
|
1 |
disc.
|
| 12 |
811672A3 |
O-RING KIT
|
1 |
superseded
|
| 13 |
811673 |
RESERVOIR
|
1 |
disc.
|
| 14 |
813435 |
PLUG KIT
|
1 |
superseded
|
| 15 |
813442A2 |
MANUAL RELEASE ASSEMBLY Relief
|
1 |
superseded
|
| 16 |
811677 |
CAP KIT Reservoir (No Longer Available) (Order 809885A1 Motor Kit)
|
1 |
disc.
|
| 17 |
813446 |
SCREW (4 Per)
|
1 |
disc.
|
| 18 |
811674 |
RESERVOIR/MOTOR (No Longer Available) (Order 809885A1 Motor Kit)
|
1 |
disc.
|
| 19 |
811675 |
ARMATURE
|
1 |
disc.
|
| 2 |
813428 |
END CAP ASSEMBLY Trim Cylinder Trim Cylinder (No Longer Available) (Order 813427--1 Shock Rod Kit)
|
1 |
disc.
|
| 20 |
811676 |
THRUST WASHER KIT
|
1 |
disc.
|
| 21 |
18286A40 |
SWITCH ASSEMBLY
|
1 |
superseded
|
| 22 |
821539 |
PIN Trilobe
|
2 |
|
| 23 |
822869 |
PIN Upper Trim Cylinder
|
1 |
superseded
|
| 24 |
999261 |
RETAINER
|
2 |
disc.
|
| 25 |
89996 |
SCREW (.250-20 x .875) (Not Used In Kit)
|
2 |
superseded
|
| 26 |
69079 |
SCREW (#10-16 x .440)
|
1 |
|
| 27 |
69205 |
C WASHER
|
1 |
superseded
|
| 28 |
22740 |
CLIP
|
1 |
|
| 29 |
18895A1 |
HARNESS ASSEMBLY Trim (Not Used In Kit)
|
1 |
|
| 3 |
813429 |
PISTON ASSEMBLY Shock
|
1 |
disc.
|
| 30 |
19761 |
RELAY Switch (Not Used In Kit)
|
1 |
|
| 31 |
812850 |
SUPPORT Relay (Not Used In Kit)
|
1 |
|
| 32 |
813939A2 |
RELAY ASSEMBLY
|
1 |
|
| 33 |
818967 |
GROMMET
|
2 |
|
| 34 |
821382 |
BRACKET Relay
|
2 |
disc.
|
| 35 |
821509 |
RELAY
|
2 |
superseded
|
| 36 |
40011130 |
SCREW (M6 x 30) Stainless Steel
|
2 |
|
| 37 |
8124431 |
RETAINER Switch
|
1 |
superseded
|
| 4 |
813432A3 |
SEAL KIT Cylinder (No Longer Available) (Order 813427A3 Shock Rod Kit)
|
1 |
disc.
|
| 5 |
810776 |
PISTON KIT Memory
|
1 |
disc.
|
| 6 |
811228 |
CYLINDER KIT
|
1 |
superseded
|
| 7 |
811226A1 |
SCREW AND SEAL KIT
|
1 |
superseded
|
| 8 |
8116706 |
PUMP/MANIFOLD KIT (No Longer Available) (Order 809901A1 Pump/Motor Assembly)
|
1 |
disc.
|
| 9 |
823180A1 |
ROCKER ARM KIT (No Longer Available) (Order 809901A1 Pump/Motor Assembly)
|
1 |
disc.
|
| _ |
822870A2 |

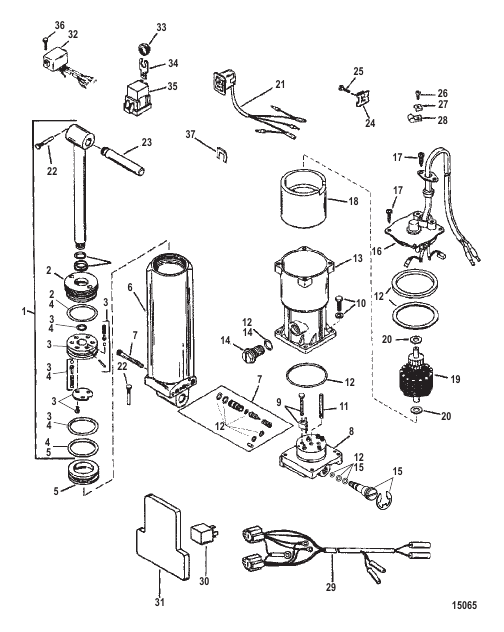

POWER TRIM KIT
|
1 |
superseded
|
| _ |
822870A1 |
PUMP ASSEMBLY Power Trim (Eaton)
|
1 |
superseded
|
| _ |
830150A2 |
PUMP ASSEMBLY Power Trim (Oildyne)
|
1 |
superseded
|
