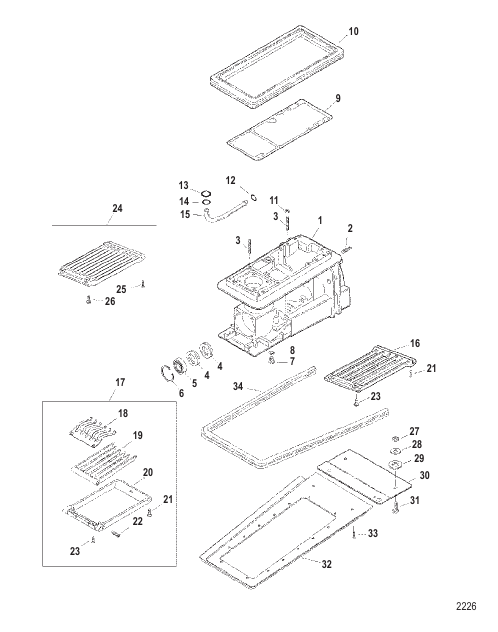

| # | Part Number | Description | Qty | Status |
|---|
| - |
877896A1 |
SEAL/GASKET SET Jet Drive Housing - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown
|
1 |
superseded
|
| - |
859438A2 |
HOUSING KIT Complete Jet Drive - No Impeller
|
1 |
|
| 1 |
859438A2 |
HOUSING KIT Complete Jet Drive - No Impeller
|
1 |
|
| 1 |
859438A1 |
HOUSING ASSEMBLY Basic Jet Drive
|
1 |
superseded
|
| 10 |
877789 |
GROMMET Pump Mount
|
1 |
superseded
|
| 11 |
826292 |
NUT (M10) Brass/Nickel Plated
|
4 |
|
| 12 |
32509 |
O-RING (.489 x .070)
|
1 |
|
| 13 |
21836 |
O-RING (.796 x .139)
|
1 |
superseded
|
| 14 |
859774 |
O-RING (.412 x .210)
|
1 |
|
| 15 |
859567 |
TUBE Water
|
1 |
|
| 16 |
852962T |
SCREEN Inlet - 6 Tines - Aluminum
|
1 |
|
| 17 |
856627T1 |
GRATE KIT Inlet Aluminum - Automatic Weed Cleanout
|
OPT |
superseded
|
| 18 |
856628T |
SPRING Inlet Grate
|
1 |
|
| 19 |
856629T |
TINES Inlet Grate
|
1 |
superseded
|
| 2 |
63186 |
FITTING (.125-27) Siphon Drain Hose
|
1 |
disc.
|
| 20 |
856627T |
FRAME Inlet Grate
|
1 |
|
| 21 |
832838 |
SCREW (M6 x 20) With Nylon Patch
|
2 |
superseded
|
| 22 |
856732 |
SCREW Special Pivot
|
2 |
disc.
|
| 23 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 24 |
854810T1 |
GRATE KIT Rock Inlet 12 Tines - Stainless Steel - For Shallow Rocky Conditions
|
OPT |
|
| 25 |
832838 |
SCREW (M6 x 20) With Nylon Patch
|
2 |
superseded
|
| 26 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 27 |
400635 |
NUT (M8)
|
2 |
superseded
|
| 28 |
46765 |
WASHER (.390 x 1.50 x .120)
|
2 |
|
| 29 |
877799 |
WASHER (.900 x 1.50 x .125)
|
2 |
|
| 3 |
820640 |
STUD (M10 x 55)
|
4 |
|
| 30 |
853905T |
PLATE Trim
|
1 |
|
| 31 |
850047 |
SCREW (M8 x 35)
|
2 |
|
| 32 |
856606A2 |
RIDE PLATE KIT
|
1 |
superseded
|
| 33 |
832838 |
SCREW (M6 x 20) With Nylon Patch
|
16 |
superseded
|
| 34 |
859441A1 |
SEAL KIT Ride Plate
|
1 |
|
| 4 |
76868 |
SEAL Oil
|
2 |
superseded
|
| 5 |
63742T |
BEARING Ball
|
1 |
|
| 6 |
55626 |
RING Snap
|
1 |
|
| 7 |
79953A2 |
SCREW KIT (.375-16 x .250)
|
2 |
superseded
|
| 8 |
19183 |
WASHER Fiber Sealing
|
2 |
superseded
|
| 9 |
859452 |
GASKET Jet Drive Housing To Top Cover
|
1 |
|
