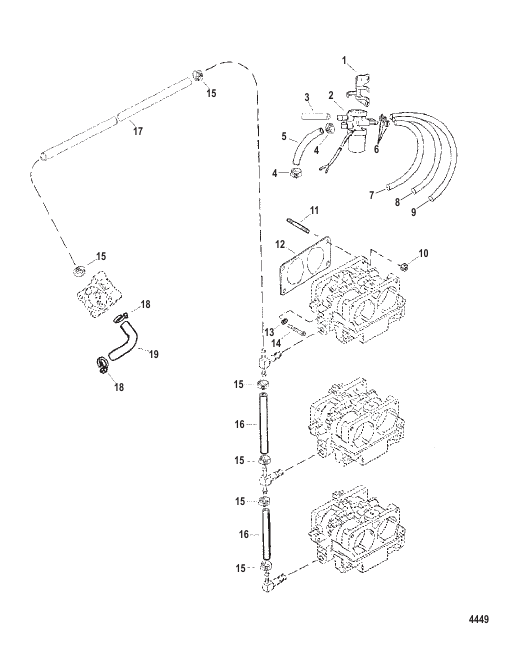

| # | Part Number | Description | Qty | Status |
|---|
| - |
8107493 |
GASKET SET Carburetor
|
1 |
|
| - |
804985A1 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| - |
858257T13 |
POWERHEAD ASSEMBLY - NOTE: Complete With Reed Blocks
|
1 |
superseded
|
| - |
858257T26 |
POWERHEAD ASSEMBLY - NOTE: Complete Without Reed Blocks
|
1 |
disc.
|
| 1 |
8224931 |
BRACKET Cold Start Solenoid
|
1 |
disc.
|
| 10 |
20361 |
NUT (.250-28)
|
6 |
superseded
|
| 11 |
270372 |
STUD (.250-28 x 1.125)
|
6 |
|
| 12 |
828292 |
GASKET Carburetor Mount
|
3 |
|
| 13 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
6 |
|
| 14 |
55715 |
SCREW (.250-20 x .880)
|
6 |
|
| 15 |
F698772 |
CLAMP Worm Gear
|
6 |
|
| 16 |
82722881 |
HOSE (38.00 Inches Bulk) Cut 4.250 Inches
|
2 |
disc.
|
| 17 |
83192377 |
HOSE (30.00 Inches Bulk) Cut 19.500 Inches
|
1 |
disc.
|
| 18 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 19 |
82381335 |
TUBING (15.00 Inches Bulk) Cut 7.500 Inches - To Oil Pump
|
1 |
|
| 2 |
831995T |
SOLENOID Cold Start
|
1 |
|
| 3 |
830757130 |
TUBING (.312) (70.00 Inches Bulk) Cut 1.750 Inches
|
1 |
superseded
|
| 4 |
815504104 |
CLAMP Worm Gear
|
2 |
|
| 5 |
8349358 |
HOSE (2.750 Inches)
|
1 |
|
| 6 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 7 |
9912878 |
HOSE (.187) (26.00 Inches Bulk) Cut 8.750 Inches - To Top Carburetor
|
1 |
|
| 8 |
9912878 |
HOSE (.187) (26.00 Inches Bulk) Cut 8.750 Inches - To Middle Carburetor
|
1 |
|
| 9 |
9912878 |
HOSE (.187) (26.00 Inches Bulk) Cut 8.750 Inches - To Bottom Carburetor
|
1 |
|
