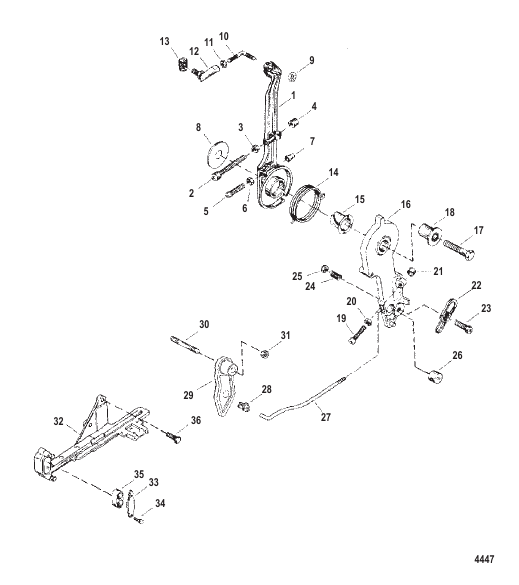

| # | Part Number | Description | Qty | Status |
|---|
| - |
858257T13 |
POWERHEAD ASSEMBLY - NOTE: Complete With Reed Blocks
|
1 |
superseded
|
| - |
858257T26 |
POWERHEAD ASSEMBLY - NOTE: Complete Without Reed Blocks
|
1 |
disc.
|
| 1 |
41094A3 |
LEVER ASSEMBLY Spark Advance
|
1 |
|
| 10 |
76035 |
ROD Link
|
1 |
disc.
|
| 11 |
45076 |
NUT (#10-32) Brass
|
1 |
|
| 12 |
62459 |
BALL JOINT ASSEMBLY
|
1 |
superseded
|
| 13 |
74897 |
PIVOT
|
1 |
superseded
|
| 14 |
823235 |
SPRING
|
1 |
|
| 15 |
55171 |
BUSHING
|
1 |
disc.
|
| 16 |
41095 |
LEVER Throttle Control
|
1 |
superseded
|
| 17 |
818165 |
SCREW (.375-16 x 1.75)
|
1 |
|
| 18 |
55164 |
BUSHING
|
1 |
|
| 19 |
64022 |
SCREW (.250-20 x 2.125)
|
1 |
|
| 2 |
64022 |
SCREW (.250-20 x 2.125)
|
1 |
|
| 20 |
64015 |
NUT (.250-20)
|
1 |
|
| 21 |
26852 |
CAP Nylon
|
1 |
|
| 22 |
39483 |
LATCH Cable End
|
1 |
|
| 23 |
69026 |
SCREW (.250-28 x .880)
|
1 |
|
| 24 |
20099 |
SPRING
|
1 |
|
| 25 |
35045 |
NUT (.250-28)
|
1 |
superseded
|
| 26 |
14638 |
BARREL
|
1 |
|
| 27 |
8302391 |
ROD Throttle Control
|
1 |
|
| 28 |
932481 |
BUSHING Swivel
|
1 |
superseded
|
| 29 |
877313 |
CAM Throttle
|
1 |
|
| 3 |
64015 |
NUT (.250-20)
|
1 |
|
| 30 |
20353 |
STUD (.250-28 x 1.750)
|
1 |
disc.
|
| 31 |
35045 |
NUT (.250-28)
|
1 |
superseded
|
| 32 |
814283A3 |
BRACKET ASSEMBLY Cable Anchor
|
1 |
disc.
|
| 33 |
98889 |
LATCH Control Cable
|
1 |
|
| 34 |
42975 |
DRIVE SCREW Special
|
2 |
|
| 35 |
39519 |
CUP Barrel Retainer
|
1 |
|
| 36 |
28782 |
SCREW (.312-18 x .880) Stainless Steel
|
3 |
|
| 4 |
26852 |
CAP Nylon
|
1 |
|
| 5 |
13627 |
SCREW (.190-32 x 1.250)
|
1 |
disc.
|
| 6 |
68219 |
NUT (#10-32) Stainless Steel
|
1 |
|
| 7 |
48039 |
CAP
|
1 |
|
| 8 |
46765 |
WASHER (.390 x 1.50 x .120)
|
1 |
|
| 9 |
46438 |
NUT (#10-32)
|
1 |
|
