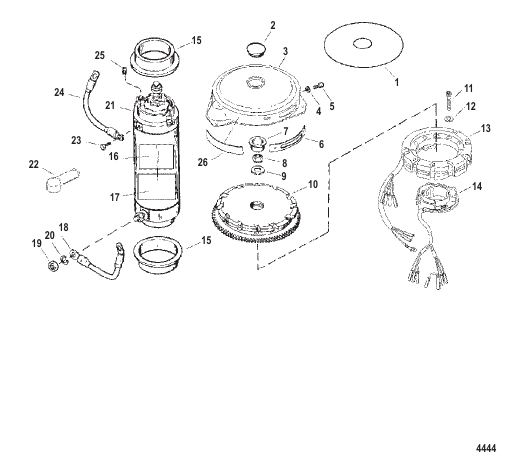

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
881955 |
DECAL Mercury V6 210 Jet Drive
|
1 |
disc.
|
| 10 |
817632A4 |
FLYWHEEL ASSEMBLY
|
1 |
superseded
|
| 11 |
846500 |
SCREW (#10-32 x 1.00) Stainless Steel
|
5 |
|
| 12 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
5 |
|
| 13 |
9873A39 |
STATOR ASSEMBLY
|
1 |
|
| 14 |
96455A15 |
PLATE ASSEMBLY Trigger
|
1 |
|
| 15 |
56703 |
COLLAR Starter Cap
|
2 |
superseded
|
| 16 |
825064 |
DECAL Caution Start In Gear [0E384500] THRU [0E407099]
|
1 |
superseded
|
| 16 |
881865 |
DECAL Caution-Start in Gear [0E407100] THRU [0E433153]
|
1 |
|
| 17 |
8272822 |
DECAL Warning High Voltage
|
1 |
|
| 18 |
93388A8 |
CABLE ASSEMBLY (12.5 Inchs) Black (12.500 Inches)
|
1 |
|
| 19 |
94330 |
NUT (.250-20) Brass
|
1 |
|
| 2 |
89219 |
PLUG Flywheel Cover Hole
|
1 |
superseded
|
| 20 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
1 |
|
| 21 |
8329972 |
STARTER MOTOR ASSEMBLY - NOTE: See Starter Motor Assembly Section For Parts Breakdown
|
1 |
superseded
|
| 22 |
830233 |
BOOT Insulator - Red Starter Motor Lead
|
1 |
|
| 23 |
69035 |
SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel
|
1 |
|
| 24 |
93388A1 |
CABLE ASSEMBLY (6.00 Inches) Black
|
1 |
|
| 25 |
68042 |
STOP Rubber
|
2 |
superseded
|
| 26 |
878078 |
DECAL Information - Oil Specification
|
1 |
disc.
|
| 3 |
79918A1 |
COVER KIT Flywheel
|
1 |
|
| 4 |
72761 |
WASHER (.203 x .562 x .060) Stainless Steel
|
2 |
|
| 5 |
37572 |
SCREW (.190-32 x .380)
|
2 |
|
| 6 |
79022 |
MARKER Timing
|
1 |
|
| 7 |
45907 |
PLUG Yellow
|
1 |
|
| 8 |
52901 |
NUT (.625-18)
|
1 |
|
| 9 |
68229 |
WASHER (.641 x 1.250 x .190)
|
1 |
superseded
|
