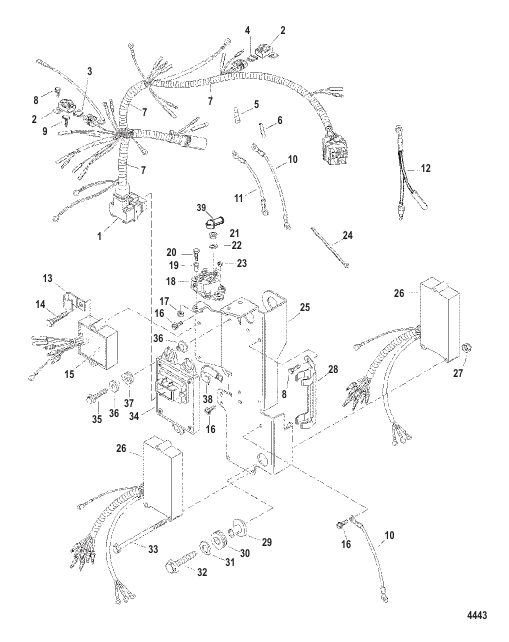

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
854816A2 |
HARNESS ASSEMBLY Engine
|
1 |
|
| 10 |
88807A44 |
CABLE ASSEMBLY Black - 9.600 Inches
|
2 |
|
| 11 |
88807A18 |
CABLE ASSEMBLY Black - 6.250 Inches
|
1 |
disc.
|
| 12 |
813524A3 |
CABLE ASSEMBLY Voltage Regulator
|
1 |
|
| 13 |
54457 |
J CLIP
|
1 |
|
| 14 |
86885 |
SCREW (.250-20 x 1.500) Stainless Steel
|
2 |
|
| 15 |
854515T1 |
REGULATOR Voltage - Design I - Marked 854515
|
1 |
superseded
|
| 15 |
883072T |
REGULATOR Voltage Voltage - Design II - Marked 883072 Or 892115001
|
1 |
superseded
|
| 16 |
43394 |
SCREW (#10-24 x .500)
|
4 |
disc.
|
| 17 |
814101 |
NUT (.250-20) Stainless Steel
|
2 |
superseded
|
| 18 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) Starter
|
1 |
|
| 19 |
818968 |
BUSHING
|
2 |
superseded
|
| 2 |
828054 |
COVER Fuse
|
2 |
|
| 20 |
28667 |
SCREW (.250-20 x 1.00) Stainless Steel
|
2 |
|
| 21 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 22 |
26993 |
LOCKWASHER (.312)
|
2 |
superseded
|
| 23 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 24 |
816311T |
TIE STRAP (8.00 Inches)
|
6 |
|
| 25 |
831991 |
PLATE Ignition Mount
|
1 |
disc.
|
| 26 |
18495A32 |
SWITCHBOX ASSEMBLY
|
2 |
|
| 27 |
20110 |
NUT (#10-32)
|
3 |
|
| 28 |
8266241 |
CLAMP
|
1 |
|
| 29 |
8502341 |
BUSHING
|
3 |
|
| 3 |
812619 |
FUSE Yellow - 20 Ampere
|
1 |
|
| 30 |
833155 |
GROMMET
|
3 |
|
| 31 |
49436 |
WASHER
|
3 |
|
| 32 |
60411 |
SCREW (.312-18 x 1.250)
|
3 |
|
| 33 |
814343 |
SCREW (#10-32 x 2.380)
|
3 |
|
| 34 |
8539552 |
ECU Engine Control Unit Turn Key Start
|
1 |
superseded
|
| 35 |
819110088 |
SCREW (.250-20 x .875)
|
3 |
disc.
|
| 36 |
8318701 |
BUSHING
|
6 |
|
| 37 |
834985 |
GROMMET
|
3 |
superseded
|
| 38 |
97224 |
J CLIP Hose
|
1 |
|
| 39 |
878569 |
BOOT Insulator - Yellow
|
1 |
disc.
|
| 4 |
852526 |
FUSE Mini - Violet - 3 Ampere
|
1 |
|
| 5 |
13541 |
PLUG Male
|
1 |
|
| 6 |
13540 |
CAP Female
|
1 |
|
| 7 |
828547353 |
CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 7 |
828547T1 |
CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 7 |
828547633 |
CONDUIT (.620 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 8 |
68513 |
SCREW (#10-32 x .375) Stainless Steel
|
3 |
|
| 9 |
828991 |
CLIP
|
1 |
superseded
|
