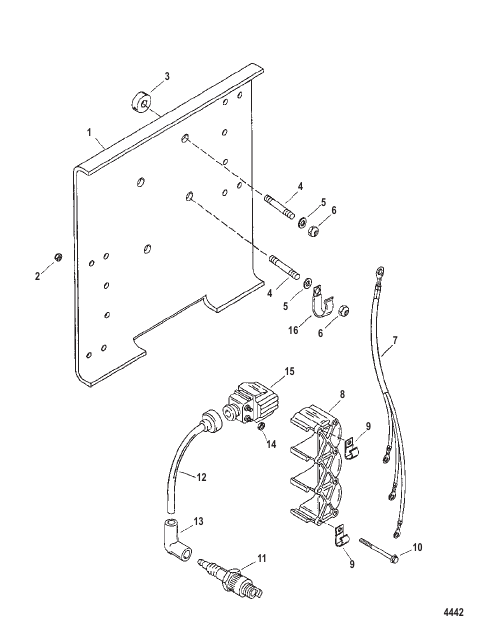

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
878095T |
PLATE Coil Mounting
|
1 |
disc.
|
| 10 |
90048 |
SCREW (#10-32 x 2.125)
|
12 |
disc.
|
| 11 |
14103568 |
SPARK PLUG (NGK # BUZ8H) (RFI)
|
6 |
superseded
|
| 12 |
813715A9 |
CABLE KIT Ignition High Tension - Six Cables
|
1 |
|
| 13 |
63709A1 |
BOOT/TERMINAL KIT High Tension Cable
|
6 |
|
| 14 |
45076 |
NUT (#10-32) Brass
|
12 |
|
| 15 |
832757A4 |
COIL KIT Ignition
|
6 |
superseded
|
| 16 |
814634 |
CLAMP
|
1 |
|
| 2 |
90078 |
NUT (#10-32)
|
12 |
disc.
|
| 3 |
875288 |
SPACER
|
4 |
|
| 4 |
69058 |
STUD (.312-18/.312-24 x 1.690)
|
4 |
superseded
|
| 5 |
49436 |
WASHER
|
4 |
|
| 6 |
46356 |
NUT (.312-24)
|
4 |
|
| 7 |
824912A7 |
HARNESS ASSEMBLY Black
|
2 |
disc.
|
| 8 |
43542 |
COVER Ignition Coil
|
2 |
disc.
|
| 9 |
63153 |
J CLIP
|
2 |
|
