| # | Part Number | Description | Qty | Status |
|---|
| 1 |
850696 |

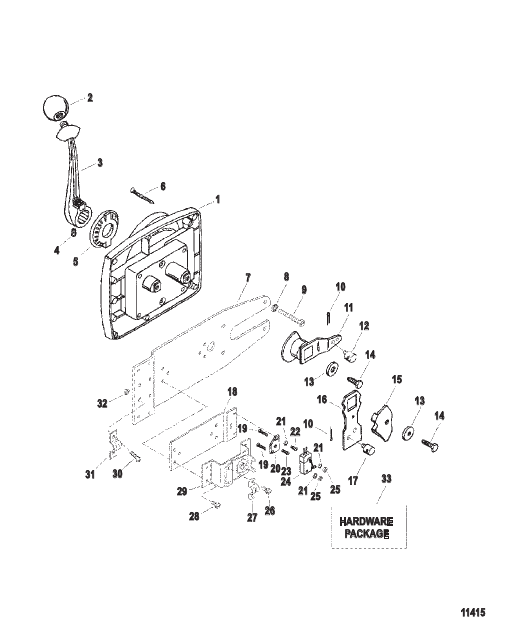

REMOTE CONTROL ASSEMBLY Complete
|
1 |
superseded
|
| 10 |
F17149 |
COTTER PIN
|
2 |
disc.
|
| 11 |
820692 |
ARM Throttle
|
1 |
disc.
|
| 12 |
F17016 |
PIVOT Cable Terminal
|
1 |
disc.
|
| 13 |
F17036 |
WASHER
|
2 |
disc.
|
| 14 |
852092 |
SCREW (.250-28 x .500)
|
2 |
disc.
|
| 15 |
820691 |
CAM Switch Actuation
|
1 |
disc.
|
| 16 |
852091 |
ARM Shift
|
1 |
superseded
|
| 17 |
852096 |
PIVOT Cable Terminal
|
1 |
disc.
|
| 18 |
852093 |
BRACKET Cable Swivel And Switch Mount
|
1 |
disc.
|
| 19 |
820698 |
SCREW (#4-40 x .750)
|
2 |
disc.
|
| 2 |
F17081 |
BALL Black Black
|
1 |
disc.
|
| 20 |
820697 |
BRACKET Switch Mounting
|
1 |
disc.
|
| 21 |
820694 |
LOCKWASHER Internal (#4)
|
3 |
disc.
|
| 22 |
820699 |
SCREW (#4-40 x .312)
|
1 |
disc.
|
| 23 |
820701 |
SCREW (#4-40 x .375)
|
1 |
disc.
|
| 24 |
820693 |
SWITCH ASSEMBLY
|
1 |
disc.
|
| 25 |
63683 |
NUT (.112-40)
|
2 |
disc.
|
| 26 |
F17071 |
SCREW (#10-24 x .3125)
|
2 |
disc.
|
| 27 |
F154317 |
CLAMP Cable
|
1 |
disc.
|
| 28 |
F17071 |
SCREW (#10-24 x .3125)
|
4 |
disc.
|
| 29 |
852090 |
BRACKET ASSEMBLY Swivel
|
1 |
disc.
|
| 3 |
820682 |
LEVER ASSEMBLY Hand
|
1 |
superseded
|
| 30 |
852094 |
SCREW (#10-24 x .500)
|
2 |
|
| 31 |
852095 |
CLAMP Cable
|
1 |
disc.
|
| 32 |
852097 |
NUT (#10-24)
|
2 |
disc.
|
| 33 |
852098 |
HARDWARE PACKAGE With Template And Manual
|
1 |
disc.
|
| 4 |
F455690 |
SET SCREW (.312-18 x .3125)
|
1 |
disc.
|
| 5 |
820696 |
INSERT Interlock
|
1 |
disc.
|
| 6 |
820695 |
SCREW (#10 x 1.250)
|
3 |
disc.
|
| 7 |
852088 |
HANGER
|
1 |
disc.
|
| 8 |
F8058 |
LOCKWASHER Internal (#10)
|
4 |
disc.
|
| 9 |
852089 |
SCREW (#10-32 x 1.500)
|
4 |
disc.
|
