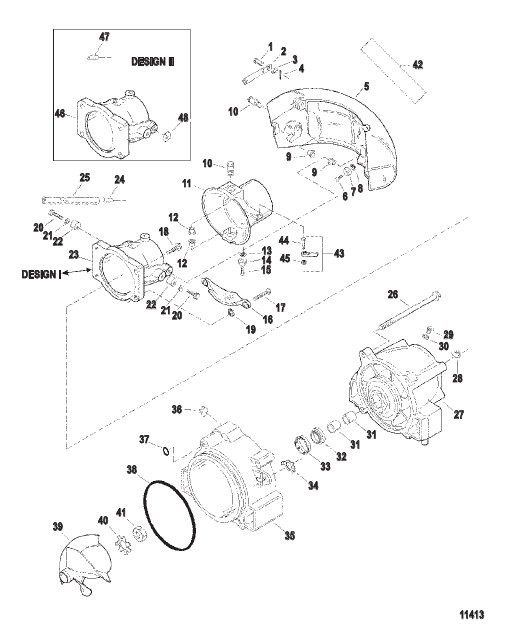

| # | Part Number | Description | Qty | Status |
|---|
| - |
809939A1 |
SEAL/GASKET SET Jet Drive Housing
|
1 |
|
| - |
830895A2 |
HOUSING KIT Jet Drive - Complete No Impeller
|
1 |
superseded
|
| 1 |
834836 |
PIN Clevis
|
1 |
disc.
|
| 10 |
831922 |
BOLT Special Pivot
|
4 |
|
| 11 |
831241A1 |
RUDDER KIT
|
1 |
|
| 12 |
832048 |
BUSHING Pivot
|
2 |
|
| 13 |
78968 |
LOCKWASHER Internal (.250)
|
1 |
|
| 14 |
8205031 |
ANODE
|
1 |
|
| 15 |
832838 |
SCREW (M6 x 20)
|
1 |
superseded
|
| 16 |
833163A1 |
ANODE KIT With Bushing In Casting
|
1 |
|
| 17 |
4010845 |
SCREW (M10 x 45) Hex Flange - Stainless Steel
|
2 |
|
| 18 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
2 |
|
| 19 |
806210 |
LOCKWASHER (.437) No Longer Required
|
2 |
|
| 2 |
834837 |
CONNECTOR Cable End
|
1 |
disc.
|
| 20 |
4007154 |
SCREW (M8 x 30)
|
2 |
|
| 21 |
36001 |
WASHER
|
2 |
|
| 22 |
820564 |
STOP Reverse Gate
|
2 |
|
| 23 |
831253A1 |
NOZZLE ASSEMBLY With Pivot Bushings - Design I
|
1 |
superseded
|
| 24 |
826701 |
FITTING Nozzle
|
1 |
|
| 25 |
850829 |
HOSE (12.00 Inches) Syphon
|
1 |
disc.
|
| 26 |
832929 |
SCREW (M10 x 150)
|
4 |
superseded
|
| 27 |
831256A2 |
STATOR ASSEMBLY
|
1 |
superseded
|
| 28 |
73379 |
PLUG (.250-18)
|
1 |
superseded
|
| 29 |
79953A2 |
SCREW KIT (.375-16 x .250) Special
|
1 |
superseded
|
| 3 |
4002317 |
WASHER (8.90 X 17.0 X 1.9SS)
|
1 |
|
| 30 |
19183 |
WASHER Fiber Sealing
|
1 |
superseded
|
| 31 |
835473 |
BUSHING Rear Stator
|
2 |
|
| 32 |
14381 |
SEAL
|
1 |
|
| 33 |
853950 |
PROTECTOR Seal
|
1 |
|
| 34 |
832983 |
TAB WASHER
|
2 |
|
| 35 |
831208A1 |
RING KIT Wear
|
1 |
|
| 36 |
428611 |
FITTING Pipe - Brass (.750-14)
|
1 |
superseded
|
| 37 |
38101 |
O-RING (.674 x .103)
|
1 |
|
| 38 |
832062 |
O-RING (7.487 x .103)
|
1 |
|
| 39 |
835452T |
IMPELLER Stainless Steel - 3 Blade
|
1 |
|
| 4 |
87200 |
COTTER PIN
|
1 |
disc.
|
| 40 |
835453 |
TAB WASHER Impeller Shaft
|
1 |
|
| 41 |
835464 |
NUT (1.250-12) Impeller Shaft
|
1 |
|
| 42 |
834831 |
DECAL Sport Jet By Mercury Marine
|
1 |
disc.
|
| 42 |
82681713 |
DECAL 175 V6 Mercury Sport Jet
|
1 |
disc.
|
| 43 |
809477A1 |
END KIT Swivel
|
1 |
superseded
|
| 44 |
803902A1 |
BOLT AND NUT KIT
|
1 |
superseded
|
| 45 |
56374 |
NUT (.250-20)
|
1 |
superseded
|
| 46 |
878111A1 |
NOZZLE ASSEMBLY With Pivot Bushings - Design II
|
1 |
disc.
|
| 47 |
826701 |
FITTING Nozzle
|
1 |
|
| 48 |
878072 |
WASHER Special
|
2 |
|
| 5 |
831238A1 |
GATE ASSEMBLY
|
1 |
disc.
|
| 6 |
832838 |
SCREW (M6 x 20)
|
1 |
superseded
|
| 7 |
8205031 |
ANODE
|
1 |
|
| 8 |
78968 |
LOCKWASHER Internal (.250)
|
1 |
|
| 9 |
832048 |
BUSHING Pivot
|
2 |
|
