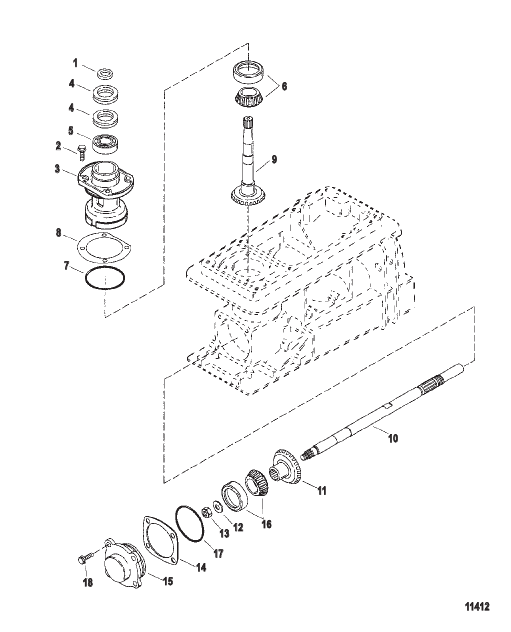

| # | Part Number | Description | Qty | Status |
|---|
| - |
809939A1 |
SEAL/GASKET SET Jet Drive Housing
|
1 |
|
| - |
830895A2 |
HOUSING KIT Jet Drive - Complete No Impeller [0E203000] THRU [0E344999]
|
1 |
superseded
|
| - |
854668A2 |
HOUSING KIT Jet Drive - Complete No Impeller [0E345000] THRU [0E369299]
|
1 |
superseded
|
| 1 |
30271 |
RING Rubber Rubber
|
1 |
superseded
|
| 10 |
835366 |
SHAFT Impeller
|
1 |
superseded
|
| 11 |
830901 |
GEAR Impeller Shaft
|
1 |
|
| 12 |
832812 |
WASHER
|
1 |
|
| 13 |
818591 |
NUT (M14)
|
1 |
|
| 14 |
831950002 |
SHIM (.002) Red
|
AR |
superseded
|
| 14 |
831950004 |
SHIM (.004) Beige
|
AR |
superseded
|
| 14 |
831950005 |
SHIM (.005) Blue
|
AR |
superseded
|
| 14 |
831950007 |
SHIM (.0075) Frost
|
AR |
superseded
|
| 14 |
831950010 |
SHIM (.010) Brown
|
AR |
superseded
|
| 15 |
830878A1 |
COVER ASSEMBLY Impeller Shaft
|
1 |
|
| 16 |
38356A1 |
BEARING SET Cup And Cone
|
1 |
|
| 17 |
841807 |
O-RING (3.500 x .103)
|
1 |
|
| 18 |
4010725 |
SCREW (M8 x 25)
|
4 |
|
| 2 |
4010725 |
SCREW (M8 x 25)
|
4 |
|
| 3 |
830748A1 |
HOUSING ASSEMBLY Pinion Shaft
|
1 |
|
| 4 |
826210 |
SEAL Pinion Shaft Housing
|
2 |
|
| 5 |
820292 |
BEARING Ball
|
1 |
|
| 6 |
38356A1 |
BEARING SET Cup And Cone
|
1 |
|
| 7 |
54030 |
O-RING (2.987 x .103)
|
1 |
|
| 8 |
831951002 |
SHIM (.002) Red
|
AR |
superseded
|
| 8 |
831951004 |
SHIM (.004) Beige
|
AR |
superseded
|
| 8 |
831951005 |
SHIM (.005) Blue
|
AR |
superseded
|
| 8 |
831951007 |
SHIM (.0075) Frost
|
AR |
superseded
|
| 8 |
831951010 |
SHIM (.010) Brown
|
AR |
superseded
|
| 9 |
830902 |
GEAR/SHAFT ASSEMBLY Pinion
|
1 |
superseded
|
