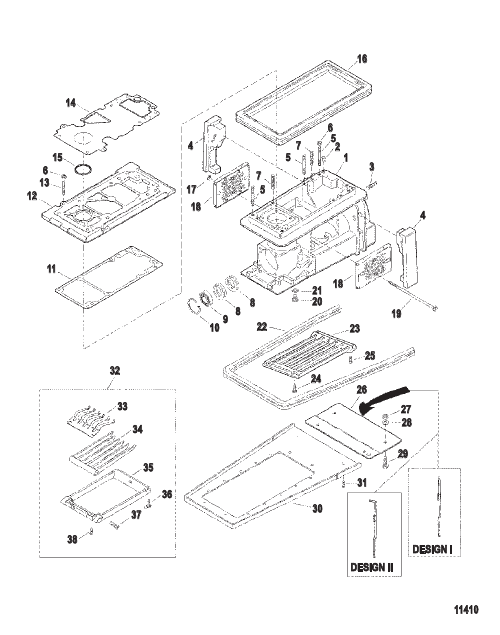

| # | Part Number | Description | Qty | Status |
|---|
| - |
809939A1 |
SEAL/GASKET SET Jet Drive Housing
|
1 |
|
| - |
830895A2 |
HOUSING KIT Jet Drive - Complete No Impeller
|
1 |
superseded
|
| 1 |
830895A2 |
HOUSING KIT Jet Drive - Complete No Impeller
|
1 |
superseded
|
| 1 |
830895A1 |
HOUSING ASSEMBLY Jet Drive
|
1 |
superseded
|
| 10 |
55626 |
RING Snap Snap
|
1 |
|
| 11 |
830244 |
GASKET Jet Drive Housing
|
1 |
|
| 12 |
830125A1 |
COVER ASSEMBLY Jet Drive Housing Also Includes Gasket Ref # 11
|
1 |
disc.
|
| 13 |
835466 |
STUD (M10 x 53)
|
2 |
superseded
|
| 14 |
835367 |
GASKET Cover To Adapter Plate
|
1 |
|
| 15 |
20826 |
O-RING (2.230 x .139)
|
1 |
|
| 16 |
820663250 |
GROMMET (.250) Pump Mount
|
AR |
|
| 16 |
820663375 |
GROMMET (.375) Pump Mount
|
AR |
disc.
|
| 16 |
820663500 |
GROMMET (.500) Pump Mount
|
AR |
|
| 17 |
826365 |
NUT (M8)
|
1 |
|
| 18 |
832811 |
BAFFLE ASSEMBLY Exhaust
|
2 |
disc.
|
| 19 |
832043 |
SCREW (M8 x 240)
|
1 |
disc.
|
| 2 |
826359 |
PIN Dowel
|
1 |
|
| 20 |
79953A2 |
SCREW KIT (.375-16 x .250)
|
2 |
superseded
|
| 21 |
19183 |
WASHER Fiber Sealing
|
2 |
superseded
|
| 22 |
8301231 |
SEAL Ride Plate
|
1 |
|
| 23 |
852962 |
SCREEN Inlet
|
1 |
superseded
|
| 24 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 25 |
832838 |
SCREW (M6 x 20) With Nylon Patch
|
2 |
superseded
|
| 26 |
833097 |
PLATE Trim Design I - Trailing Edge Is Flat
|
1 |
superseded
|
| 26 |
853905 |
PLATE Trim Design II - Trailing Edge Is Turned Up
|
1 |
superseded
|
| 27 |
400635 |
NUT (M8)
|
2 |
superseded
|
| 28 |
4002317 |
WASHER (8.90 X 17.0 X 1.9SS) Required With 833097 Trim Plate Only
|
2 |
|
| 29 |
850047 |
SCREW (M8 x 35)
|
2 |
|
| 3 |
63186 |
FITTING (.125-27) Syphon Drain Hose
|
1 |
disc.
|
| 30 |
831856A1 |
RIDE PLATE KIT
|
1 |
|
| 31 |
832838 |
SCREW (M6 x 20) With Nylon Patch
|
16 |
superseded
|
| 32 |
856627T1 |
GRATE KIT Inlet Aluminum - Automatic Weed Cleanout
|
OPT |
superseded
|
| 33 |
856628T |
SPRING Inlet Grate
|
1 |
|
| 34 |
856629T |
TINES Inlet Grate
|
1 |
superseded
|
| 35 |
856627T |
FRAME Inlet Grate
|
1 |
|
| 36 |
832838 |
SCREW (M6 x 20) With Nylon Patch
|
2 |
superseded
|
| 37 |
856732 |
SCREW Special Pivot
|
2 |
disc.
|
| 38 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 4 |
831976 |
FOAM Exhaust Deflector
|
2 |
disc.
|
| 5 |
834835 |
STUD (M10 x 76)
|
6 |
superseded
|
| 6 |
826292 |
NUT (M10) Brass/Nickel Plated
|
12 |
|
| 7 |
820640 |
STUD (M10 x 55)
|
4 |
|
| 8 |
76868 |
SEAL Oil
|
2 |
superseded
|
| 9 |
63742 |
BEARING Ball
|
1 |
superseded
|
