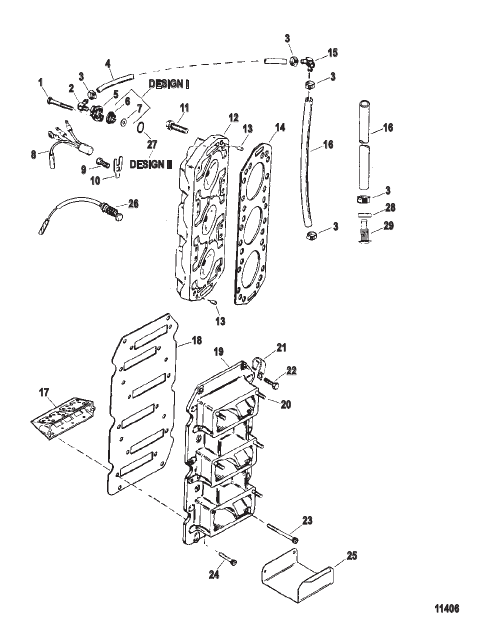

| # | Part Number | Description | Qty | Status |
|---|
| - |
56759 |
FITTING Barbed Barbed - Also See Oil Bleed System Section
|
2 |
|
| - |
426981 |
CHECK VALVE Also See Oil Bleed System Section
|
1 |
superseded
|
| - |
850396A1 |
GASKET/SEAL SET Powerhead
|
1 |
|
| - |
9763A64 |
POWERHEAD ASSEMBLY Complete With Reed Blocks
|
1 |
superseded
|
| - |
9763T66 |
POWERHEAD ASSEMBLY Complete Without Reed Blocks
|
1 |
disc.
|
| 1 |
35386 |
SCREW (.312-18 x 1.00)
|
4 |
|
| 10 |
137151 |
RETAINER Sensor
|
2 |
|
| 11 |
98534 |
SCREW (.375-16 x 2.30)
|
24 |
disc.
|
| 12 |
18488F1 |
CYLINDER HEAD
|
2 |
superseded
|
| 13 |
63779 |
PIN Dowel (.250 x .625)
|
4 |
|
| 14 |
8228441 |
GASKET Cylinder Head
|
2 |
superseded
|
| 15 |
68728 |
FITTING
|
1 |
disc.
|
| 16 |
7765377 |
HOSE (24.500 Inches Bulk) Cut 18.00 Inches - To Center Fitting On Bottom Adapter Plate [0E288000] THRU [0E344999]
|
1 |
superseded
|
| 16 |
77653101 |
HOSE (48.00 Inches Bulk) Cut As Required - To Thru Hull Fitting [0E345000] THRU [0E369299]
|
1 |
|
| 17 |
116452 |
REED BLOCK ASSEMBLY
|
6 |
superseded
|
| 18 |
146972 |
GASKET Adapter Plate
|
1 |
|
| 19 |
43517A9 |
PLATE ASSEMBLY Adapter
|
1 |
disc.
|
| 2 |
68727 |
FITTING (.250-18) 90 Degree - Brass 90 Degree
|
1 |
superseded
|
| 20 |
27037 |
STUD (.250-28 x 1.125)
|
6 |
superseded
|
| 21 |
55098 |
J CLIP
|
1 |
superseded
|
| 22 |
28668 |
SCREW (.250-20 x .875) Stainless Steel
|
8 |
|
| 23 |
96529 |
SCREW (.250-20 x 2.00) Plate To Crankcase
|
6 |
disc.
|
| 24 |
55715 |
SCREW (.250-20 x .880) Carburetor Mounting
|
6 |
|
| 25 |
852356 |
SHIELD Heat - Bottom Carburetor
|
1 |
disc.
|
| 26 |
787994 |
SENDER Temperature - Port [0E288000] THRU [0E369299]
|
1 |
|
| 27 |
35126 |
O-RING (.859 x .139) Design II
|
2 |
|
| 28 |
856981 |
NUT (.562-18) [0E345000] THRU [0E369299]
|
1 |
|
| 29 |
856867 |
FITTING [0E345000] THRU [0E369299]
|
1 |
|
| 3 |
F698772 |
CLAMP Worm Gear
|
4 |
|
| 4 |
7765377 |
HOSE (24.500 Inches Bulk) Cut 12.750 Inches
|
1 |
superseded
|
| 5 |
90390A1 |
COVER KIT Thermostat
|
2 |
|
| 6 |
62386 |
GASKET Thermostat Design I
|
2 |
superseded
|
| 7 |
47533 |
WASHER Thermostat Design I
|
2 |
|
| 8 |
13536A2 |
SENSOR ASSEMBLY Temperature Starboard
|
1 |
superseded
|
| 9 |
86750 |
SCREW (.312-18 x .620)
|
2 |
|
