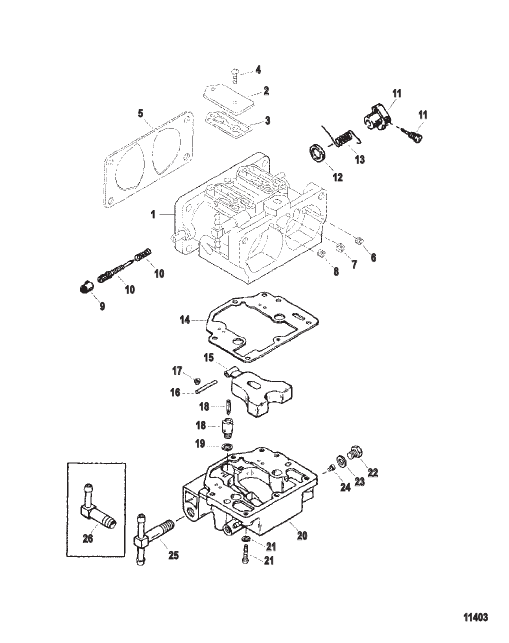

| # | Part Number | Description | Qty | Status |
|---|
| - |
8107493 |
GASKET SET Carburetor
|
1 |
|
| - |
8116913 |
REPAIR KIT Carburetor
|
1 |
|
| - |
850396A1 |
GASKET/SEAL SET Powerhead
|
1 |
|
| - |
9763A64 |
POWERHEAD ASSEMBLY Complete With Reed Blocks
|
1 |
superseded
|
| - |
9763T66 |
POWERHEAD ASSEMBLY Complete Without Reed Blocks
|
1 |
disc.
|
| 1 |
828272A58 |
CARBURETOR Top (WMV-9-1A)
|
1 |
superseded
|
| 1 |
828272A59 |
CARBURETOR Center (WMV-9-2A)
|
1 |
superseded
|
| 1 |
828272A60 |
CARBURETOR Bottom (WMV-9-3A)
|
1 |
superseded
|
| 10 |
NSS |
NOT SOLD SEPARATE Idle Mixture Needle And Spring
|
6 |
|
| 11 |
8113523 |
LEVER KIT
|
3 |
disc.
|
| 12 |
6031 |
SPACER
|
3 |
disc.
|
| 13 |
NSS |
NOT SOLD SEPARATE Throttle Return Spring
|
3 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Fuel Bowl Gasket
|
3 |
|
| 15 |
810738 |
FLOAT ASSEMBLY
|
3 |
|
| 16 |
F10064 |
SHAFT Float
|
3 |
|
| 17 |
NSS |
NOT SOLD SEPARATE Float Pin Screw
|
3 |
|
| 18 |
8116901 |
VALVE SEAT KIT
|
3 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Valve Seat Gasket
|
3 |
|
| 2 |
809743 |
COVER Idle Circuit
|
6 |
disc.
|
| 20 |
8236231 |
BOWL Fuel Top
|
1 |
disc.
|
| 20 |
8236241 |
BOWL Fuel Center And Bottom
|
2 |
disc.
|
| 21 |
808612 |
SCREW AND WASHER (#8-32 x .750) Fuel Bowl
|
18 |
|
| 22 |
811694 |
PLUG KIT Drain
|
6 |
|
| 23 |
NSS |
NOT SOLD SEPARATE Drain Plug Gasket
|
6 |
|
| 24 |
3796 |
JET (.076) Main Fuel Port And Starboard (0 - 1000 Feet)
|
12 |
|
| 24 |
3794 |
JET (.074) Main Fuel Port And Starboard (1000 - 3000 Feet)
|
OPT |
|
| 24 |
6207 |
JET (.072) Main Fuel Port And Starboard (3000 - 6000 Feet)
|
OPT |
|
| 24 |
6030 |
JET (.070) Main Fuel Port And Starboard (6000 - 8000 Feet)
|
OPT |
|
| 24 |
6029 |
JET (.068) Main Fuel Port And Starboard (8000 - 10000 Feet)
|
OPT |
|
| 25 |
855526 |
FITTING Tee Top And Center
|
2 |
disc.
|
| 26 |
855527 |
FITTING Elbow Bottom
|
1 |
|
| 3 |
809758 |
GASKET Idle Circuit Cover
|
6 |
disc.
|
| 4 |
8087391 |
SCREW Idle Circuit Cover
|
12 |
disc.
|
| 5 |
828292 |
GASKET Carburetor Mount
|
3 |
|
| 6 |
815633050 |
JET (.050) Idle Air Vent Top And Center - Port
|
2 |
disc.
|
| 6 |
815633054 |
JET (.054) Idle Air Vent Bottom - Port
|
1 |
|
| 7 |
6201 |
JET (.080) Bowl Vent
|
3 |
|
| 8 |
815633050 |
JET (.050) Idle Air Vent - Starboard
|
3 |
disc.
|
| 9 |
810779 |
CAP Limiter
|
3 |
disc.
|
