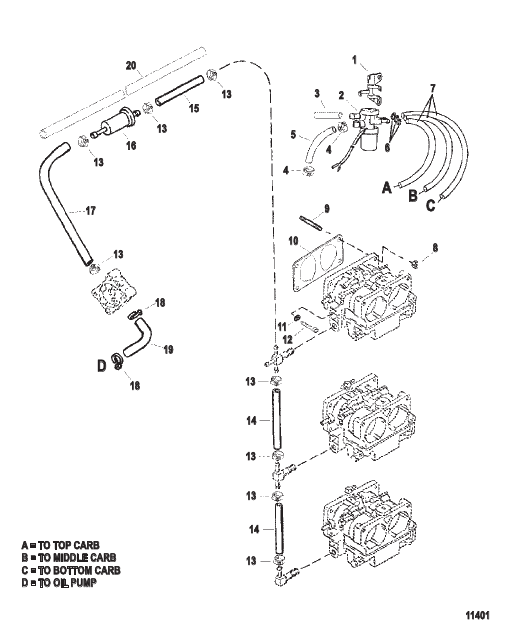

| # | Part Number | Description | Qty | Status |
|---|
| - |
8107493 |
GASKET SET Carburetor
|
1 |
|
| - |
850396A1 |
GASKET/SEAL SET Powerhead
|
1 |
|
| - |
9763A64 |
POWERHEAD ASSEMBLY Complete With Reed Blocks
|
1 |
superseded
|
| - |
9763T66 |
POWERHEAD ASSEMBLY Complete Without Reed Blocks
|
1 |
disc.
|
| 1 |
8224931 |
BRACKET Cold Start Solenoid
|
1 |
disc.
|
| 10 |
828292 |
GASKET Carburetor Mount
|
3 |
|
| 11 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
6 |
|
| 12 |
55715 |
SCREW (.250-20 x .880)
|
6 |
|
| 13 |
F698772 |
CLAMP Worm Gear
|
6/8 |
|
| 14 |
82722881 |
HOSE (38.00 Inches Bulk) Cut 4.250 Inches
|
2 |
disc.
|
| 15 |
83192339 |
HOSE (11.00 Inches Bulk) Cut 8.00 Inches [0E203000] THRU [0E344999]
|
1 |
superseded
|
| 16 |
834830 |
FILTER Fuel [0E203000] THRU [0E344999]
|
1 |
disc.
|
| 17 |
83192339 |
HOSE (11.00 Inches Bulk) Cut 9.00 Inches [0E203000] THRU [0E344999]
|
1 |
superseded
|
| 18 |
816311 |
TIE STRAP (8.00 Inches)
|
2 |
superseded
|
| 19 |
82381329 |
TUBING (12.00 Inches Bulk) Cut 7.500 Inches
|
1 |
superseded
|
| 2 |
831995 |
SOLENOID Cold Start
|
1 |
superseded
|
| 20 |
83192377 |
HOSE (30.00 Inches Bulk) Cut 19.500 Inches [0E345000] THRU [0E369299]
|
1 |
disc.
|
| 3 |
83075780 |
TUBING (28.00 Inches Bulk) Cut 1.750 Inches
|
1 |
superseded
|
| 4 |
815504104 |
CLAMP Worm Gear
|
2 |
|
| 5 |
8349358 |
HOSE (2.750 Inches)
|
1 |
|
| 6 |
816311 |
TIE STRAP (8.00 Inches)
|
3 |
superseded
|
| 7 |
9912878 |
HOSE (.187) (26.00 Inches Bulk) Cut 8.750 Inches
|
3 |
|
| 8 |
20361 |
NUT (.250-28)
|
6 |
superseded
|
| 9 |
27037 |
STUD (.250-28 x 1.125)
|
6 |
superseded
|
