| # | Part Number | Description | Qty | Status |
|---|
| - |
877896A1 |
SEAL/GASKET SET Jet Drive Housing - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown
|
1 |
superseded
|
| - |
804985A1 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| - |
858257T13 |
POWERHEAD ASSEMBLY Complete - NOTE: With Reed Blocks
|
1 |
superseded
|
| - |
858257T26 |
POWERHEAD ASSEMBLY Complete - NOTE: Without Reed Blocks
|
1 |
disc.
|
| 1 |
859394T |

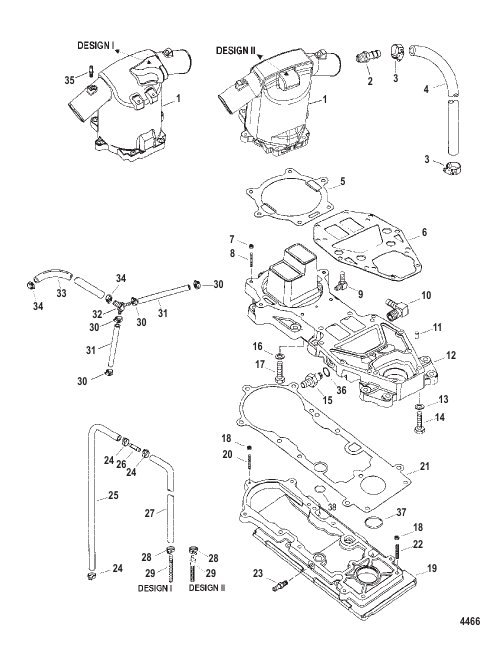

CHAMBER Expansion - Design I - Reference Line Art Drawing
|
1 |
superseded
|
| 1 |
879890A3 |
CHAMBER KIT Expansion - With Hose 21.00 Inches - Design II - Reference Line Art Drawings
|
1 |
|
| 10 |
860346 |
FITTING Elbow (90 Degree) (.750)
|
1 |
|
| 11 |
43044 |
PIN Dowel - Without Hole (.375 x .625) Locating
|
2 |
|
| 12 |
859395T |
ADAPTER Engine
|
1 |
|
| 13 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
8 |
|
| 14 |
35787 |
SCREW (.375-16 x 2.250)
|
8 |
|
| 15 |
877311 |
FITTING Strainer
|
1 |
|
| 16 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
2 |
|
| 17 |
72094 |
SCREW (.375-16 x 3.750)
|
2 |
|
| 18 |
826292 |
NUT (M10) Brass/Nickel Plated
|
11 |
|
| 19 |
859396A1 |
COVER ASSEMBLY (Top Of Jet Drive Housing)
|
1 |
|
| 2 |
42683 |
CONNECTOR (.750-14)
|
1 |
|
| 20 |
853303 |
STUD (M10 x 53)
|
5 |
|
| 21 |
859398 |
GASKET Engine Adaptor
|
1 |
|
| 22 |
859764 |
STUD (M10 x 101)
|
6 |
|
| 23 |
70146 |
CONNECTOR Barbed (.250-18)
|
1 |
|
| 24 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 25 |
1678978 |
HOSE (9.00 Feet Bulk) Cut 42.00 Inches - Siphon
|
1 |
superseded
|
| 26 |
858456 |
SIPHON BREAK
|
1 |
|
| 27 |
1678978 |
HOSE (9.00 Feet Bulk) Cut 18.00 Inches - Siphon
|
1 |
superseded
|
| 28 |
415825 |
CLAMP Nylon - Used On Design I
|
1 |
|
| 28 |
816311T |
TIE STRAP (8.00 Inches) - Used On Design II
|
1 |
|
| 29 |
826703 |
FILTER Siphon Hose - Design I - Brass/Copper
|
1 |
superseded
|
| 29 |
8348084 |
STRAINER Siphon Hose - Design II - Nylon
|
1 |
|
| 3 |
815504310 |
CLAMP Worm Gear
|
2 |
|
| 30 |
815504104 |
CLAMP Worm Gear
|
4 |
|
| 31 |
830757130 |
TUBING (.312) (70.00 Inches Bulk) Cut 6.00 Inches
|
2 |
superseded
|
| 32 |
877539 |
FITTING
|
1 |
|
| 33 |
85525884 |
HOSE (32.00 Inches)
|
1 |
|
| 34 |
815504206 |
CLAMP Worm Gear
|
2 |
|
| 35 |
16604 |
FITTING Straight (.125-27)
|
2 |
|
| 36 |
45711 |
O-RING (.612 x .103) Strainer Fitting
|
1 |
|
| 37 |
20826 |
O-RING (2.230 x .139) Top Cover
|
1 |
|
| 38 |
90196 |
O-RING (.921 x .139) Top Cover
|
1 |
superseded
|
| 4 |
4285069 |
HOSE (44.00 Inches Bulk) Cut As Required
|
1 |
superseded
|
| 5 |
880738 |
GASKET Expansion Chamber
|
1 |
|
| 6 |
8231423 |
GASKET Expansion Chamber - Block To Exhaust
|
1 |
|
| 7 |
826365 |
NUT (M8)
|
6 |
|
| 8 |
884824 |
STUD (M8 x 50)
|
6 |
|
| 9 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
