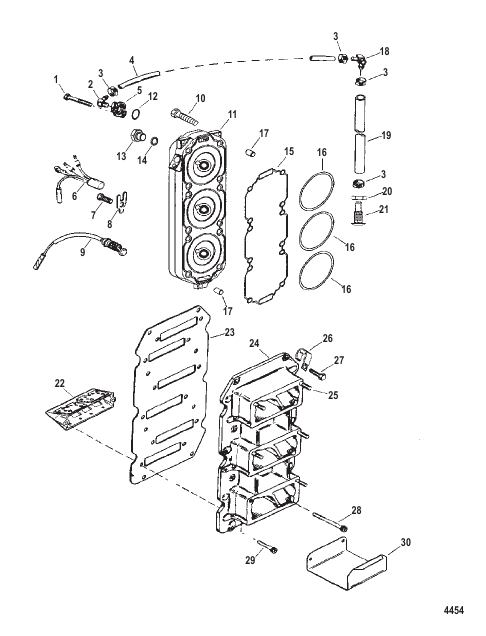

| # | Part Number | Description | Qty | Status |
|---|
| - |
56759 |
FITTING Barbed - NOTE: See Oil Bleed System Section
|
2 |
|
| - |
426981 |
CHECK VALVE - NOTE: See Oil Bleed System Section
|
1 |
superseded
|
| - |
804985A1 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| - |
858257T13 |
POWERHEAD ASSEMBLY Complete - NOTE: With Reed Blocks
|
1 |
superseded
|
| - |
858257T26 |
POWERHEAD ASSEMBLY Complete - NOTE: Without Reed Blocks
|
1 |
disc.
|
| 1 |
40011149 |
SCREW (M8 x 25) Stainless Steel
|
4 |
|
| 10 |
878217 |
SCREW (.375-16 x 2.750)
|
24 |
superseded
|
| 11 |
858281T3 |
CYLINDER HEAD - Design I
|
2 |
superseded
|
| 11 |
858281A11 |
CYLINDER HEAD KIT - Design II
|
2 |
|
| 12 |
35126 |
O-RING (.859 x .139)
|
2 |
|
| 13 |
8591001 |
PLUG ASSEMBLY (M10 x 1.5) Brass Cylinder Head - Design II
|
2 |
|
| 14 |
627021 |
O-RING (.301 x .070)
|
2 |
|
| 15 |
8584521 |
SEAL Cylinder Head
|
2 |
superseded
|
| 16 |
8597721 |
SEAL Cylinder Bore
|
6 |
|
| 17 |
63779 |
PIN Dowel (.250 x .625)
|
4 |
|
| 18 |
68728 |
FITTING
|
1 |
disc.
|
| 19 |
BOATPART |
SEE BOAT MANUFACTURER Hose - To Thru Hull Fitting
|
1 |
|
| 2 |
687271 |
FITTING (.250-18) 90 Degree - Brass
|
1 |
|
| 20 |
856981 |
NUT (.562-18)
|
1 |
|
| 21 |
856867 |
FITTING
|
1 |
|
| 22 |
855952T3 |
REED BLOCK ASSEMBLY
|
6 |
|
| 23 |
146972 |
GASKET Adaptor Plate
|
1 |
|
| 24 |
43517A9 |
PLATE ASSEMBLY Adaptor
|
1 |
disc.
|
| 25 |
270372 |
STUD (.250-28 x 1.125)
|
6 |
|
| 26 |
55098 |
J CLIP
|
1 |
superseded
|
| 27 |
28668 |
SCREW (.250-20 x .875) Stainless Steel
|
8 |
|
| 28 |
96529 |
SCREW (.250-20 x 2.00)
|
6 |
disc.
|
| 29 |
55715 |
SCREW (.250-20 x .880)
|
6 |
|
| 3 |
F698772 |
CLAMP Worm Gear
|
4 |
|
| 30 |
852356 |
SHIELD Heat - Bottom Carburetor
|
1 |
disc.
|
| 4 |
77653101 |
HOSE (48.00 Inches Bulk) Cut 12.750 Inches
|
1 |
|
| 5 |
90390A1 |
COVER KIT
|
2 |
|
| 6 |
13536A2 |
SENSOR ASSEMBLY Temperature - Starboard
|
1 |
superseded
|
| 7 |
81893414 |
SCREW (M8 x 14)
|
2 |
|
| 8 |
137151 |
RETAINER Sensor
|
2 |
|
| 9 |
787996 |
SENDER Temperature - Port
|
1 |
|
