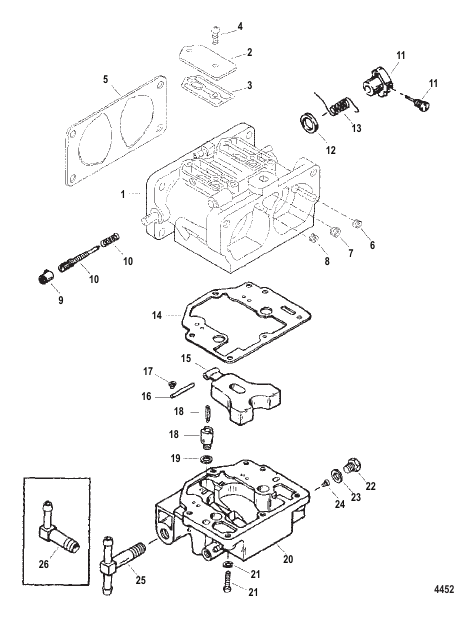

| # | Part Number | Description | Qty | Status |
|---|
| - |
8107493 |
GASKET SET Carburetor
|
1 |
|
| - |
8116913 |
REPAIR KIT Carburetor
|
1 |
|
| - |
804985A1 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| 1 |
828272A61 |
CARBURETOR Top (WMV-14-1A)
|
1 |
disc.
|
| 1 |
828272A62 |
CARBURETOR Center (WMV-14-2A)
|
1 |
disc.
|
| 1 |
828272A63 |
CARBURETOR Bottom (WMV-14-3A)
|
1 |
disc.
|
| 10 |
NSS |
NOT SOLD SEPARATE Idle Mixture Needle And Spring
|
6 |
|
| 11 |
8113523 |
LEVER KIT
|
3 |
disc.
|
| 12 |
6031 |
SPACER
|
3 |
disc.
|
| 13 |
NSS |
NOT SOLD SEPARATE Throttle Return Spring
|
3 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Fuel Bowl Gasket
|
3 |
|
| 15 |
810738 |
FLOAT ASSEMBLY
|
3 |
|
| 16 |
F10064 |
SHAFT Float
|
3 |
|
| 17 |
5902 |
SCREW (#6-32 x .187) Float Pin
|
3 |
disc.
|
| 18 |
8116901 |
VALVE SEAT KIT
|
3 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Valve Seat Gasket
|
3 |
|
| 2 |
809743 |
COVER Idle Circuit
|
6 |
disc.
|
| 20 |
8236231 |
BOWL Fuel - Top Carb
|
1 |
disc.
|
| 20 |
8236241 |
BOWL Fuel - Center And Bottom Carbs
|
2 |
disc.
|
| 21 |
808612 |
SCREW AND WASHER (#8-32 x .750) Fuel Bowl
|
18 |
|
| 22 |
811694 |
PLUG KIT Drain
|
6 |
|
| 23 |
NSS |
NOT SOLD SEPARATE Drain Plug Gasket
|
6 |
|
| 24 |
3796 |
JET (.076) Main - Top Carb - Starboard (0 - 1000 Feet)
|
1 |
|
| 24 |
3794 |
JET (.074) Main - Top Carb - Starboard (1000 - 3000 Feet)
|
OPT |
|
| 24 |
6207 |
JET (.072) Main - Top Carb - Starboard (3000 - 6000 Feet)
|
OPT |
|
| 24 |
6030 |
JET (.070) Main - Top Carb - Starboard (6000 - 8000 Feet)
|
OPT |
|
| 24 |
6029 |
JET (.068) Main - Top Carb - Starboard (8000 - 10000 Feet)
|
OPT |
|
| 24 |
5815 |
JET (.086) Main - Center Carb - Starboard (0 - 1000 Feet)
|
1 |
|
| 24 |
3517 |
JET (.084) Main - Center Carb - Starboard (1000 - 3000 Feet)
|
OPT |
|
| 24 |
3518 |
JET (.082) Main - Center Carb - Starboard (3000 - 6000 Feet)
|
OPT |
|
| 24 |
6201 |
JET (.080) Main - Center Carb - Starboard (6000 - 8000 Feet)
|
OPT |
|
| 24 |
6680 |
JET (.078) Main - Center Carb - Starboard (8000 - 10000 Feet)
|
OPT |
|
| 24 |
3518 |
JET (.082) Main - Bottom Carb - Starboard (0 - 1000 Feet)
|
1 |
|
| 24 |
6201 |
JET (.080) Main - Bottom Carb - Starboard (1000 - 3000 Feet)
|
OPT |
|
| 24 |
6680 |
JET (.078) Main - Bottom Carb - Starboard (3000 - 6000 Feet)
|
OPT |
|
| 24 |
3796 |
JET (.076) Main - Bottom Carb - Starboard (6000 - 8000 Feet)
|
OPT |
|
| 24 |
3794 |
JET (.074) Main - Bottom Carb - Starboard (8000 - 10000 Feet)
|
OPT |
|
| 24 |
3518 |
JET (.082) Main - Top Carb - Port (0 - 1000 Feet)
|
1 |
|
| 24 |
6201 |
JET (.080) Main - Top Carb - Port (1000 - 3000 Feet)
|
OPT |
|
| 24 |
6680 |
JET (.078) Main - Top Carb - Port (3000 - 6000 Feet)
|
OPT |
|
| 24 |
3796 |
JET (.076) Main - Top Carb - Port (6000 - 8000 Feet)
|
OPT |
|
| 24 |
3794 |
JET (.074) Main - Top Carb - Port (8000 - 10000 Feet)
|
OPT |
|
| 24 |
3517 |
JET (.084) Main - Center Carb - Port (0 - 1000 Feet)
|
1 |
|
| 24 |
3518 |
JET (.082) Main - Center Carb - Port (1000 - 3000 Feet)
|
OPT |
|
| 24 |
6201 |
JET (.080) Main - Center Carb - Port (3000 - 6000 Feet)
|
OPT |
|
| 24 |
6680 |
JET (.078) Main - Center Carb - Port (6000 - 8000 Feet)
|
OPT |
|
| 24 |
3796 |
JET (.076) Main - Center Carb - Port (8000 - 10000 Feet)
|
OPT |
|
| 24 |
3518 |
JET (.082) Main - Bottom Carb - Port (0 - 1000 Feet)
|
1 |
|
| 24 |
6201 |
JET (.080) Main - Bottom Carb - Port (1000 - 3000 Feet)
|
OPT |
|
| 24 |
6680 |
JET (.078) Main - Bottom Carb - Port (3000 - 6000 Feet)
|
OPT |
|
| 24 |
3796 |
JET (.076) Main - Bottom Carb - Port (6000 - 8000 Feet)
|
OPT |
|
| 24 |
3794 |
JET (.074) Main - Bottom Carb - Port (8000 - 10000 Feet)
|
OPT |
|
| 25 |
855526 |
FITTING Tee - Top And Center Carb
|
2 |
disc.
|
| 26 |
855527 |
FITTING Elbow - Bottom Carb
|
1 |
|
| 3 |
809758 |
GASKET Idle Circuit Cover
|
6 |
disc.
|
| 4 |
8087391 |
SCREW Idle Circuit Cover
|
12 |
disc.
|
| 5 |
828292 |
GASKET Carburetor Mount
|
3 |
|
| 6 |
815633054 |
JET (.054) Idle Air Vent - Top Carb - Port
|
1 |
|
| 6 |
815633048 |
JET (.048) Idle Air Vent - Center Carb - Port
|
1 |
disc.
|
| 6 |
815633054 |
JET (.054) Idle Air Vent - Bottom Carb - Port
|
1 |
|
| 7 |
6201 |
JET (.080) Bowl Vent
|
3 |
|
| 8 |
810742 |
JET (.044) Idle Air Vent - Top Carb - Starboard
|
1 |
disc.
|
| 8 |
815633050 |
JET (.050) Idle Air Vent - Center Carb - Starboard
|
1 |
disc.
|
| 8 |
815633054 |
JET (.054) Idle Air Vent - Bottom Carb - Starboard
|
1 |
|
| 9 |
810779 |
CAP Limiter
|
3 |
disc.
|
