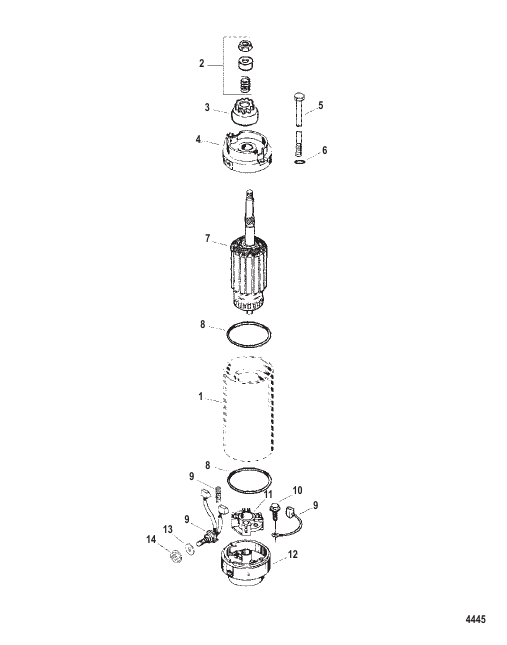

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8329972 |
STARTER MOTOR ASSEMBLY
|
1 |
superseded
|
| 10 |
F15158 |
SCREW Brush Holder
|
2 |
disc.
|
| 11 |
61787 |
HOLDER Brush
|
1 |
superseded
|
| 12 |
851993 |
CAP Comm End
|
1 |
disc.
|
| 13 |
F15160 |
WASHER Brush Post Insulator
|
1 |
superseded
|
| 14 |
F15162 |
NUT Brush Post
|
1 |
disc.
|
| 2 |
90645 |
DRIVE KIT Pinion
|
1 |
|
| 3 |
13310T1 |
PINION ASSEMBLY Drive
|
1 |
|
| 4 |
851990 |
CAP ASSEMBLY Drive End
|
1 |
disc.
|
| 5 |
851991 |
THRU BOLT
|
2 |
superseded
|
| 6 |
851995 |
O-RING Thru Bolt
|
2 |
disc.
|
| 7 |
851992 |
ARMATURE
|
1 |
|
| 8 |
852084 |
O-RING Starter Motor Frame
|
2 |
disc.
|
| 9 |
75384 |
BRUSH/SPRING KIT
|
1 |
superseded
|
