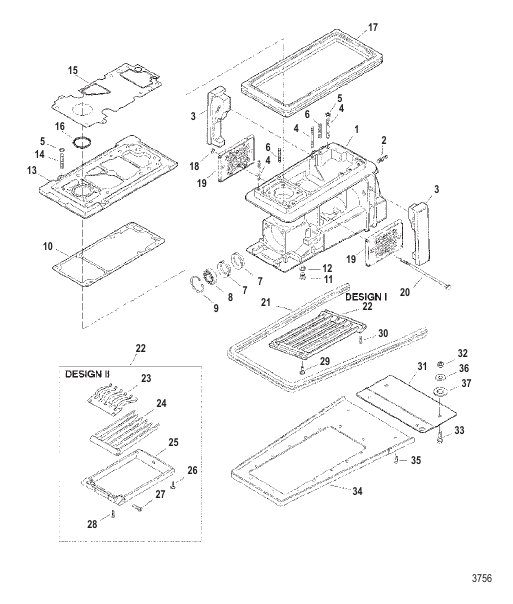

| # | Part Number | Description | Qty | Status |
|---|
| - |
809939A1 |
SEAL/GASKET SET Jet Drive Housing (See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown)
|
1 |
|
| 1 |
859609A2 |
HOUSING KIT Jet Drive (Complete) (No Impeller)
|
1 |
disc.
|
| 1 |
859609A1 |
HOUSING ASSEMBLY Jet Drive (Basic)
|
1 |
disc.
|
| 10 |
830244 |
GASKET (Jet Drive Housing)
|
1 |
|
| 11 |
79953A2 |
SCREW KIT (.375-16 x .250)
|
2 |
superseded
|
| 12 |
19183 |
WASHER Fiber Sealing
|
2 |
superseded
|
| 13 |
830125A1 |
COVER ASSEMBLY Drive Housing (Includes Gasket Ref #10)
|
1 |
disc.
|
| 14 |
853303 |
STUD (M10 x 53)
|
2 |
|
| 15 |
835367 |
GASKET (Cover To Adaptor Plate)
|
1 |
|
| 16 |
20826 |
O-RING (2.230 x .139)
|
1 |
|
| 17 |
820663250 |
GROMMET (.250) Pump Mount
|
AR |
|
| 17 |
820663375 |
GROMMET (.375) Pump Mount
|
AR |
disc.
|
| 17 |
820663500 |
GROMMET (.500) Pump Mount
|
AR |
|
| 18 |
826365 |
NUT (M8)
|
1 |
|
| 19 |
832811 |
BAFFLE ASSEMBLY Exhaust
|
2 |
disc.
|
| 2 |
63186 |
FITTING (.125-27) (Siphon Drain Hose)
|
1 |
disc.
|
| 20 |
832043 |
SCREW (M8 x 240)
|
1 |
disc.
|
| 21 |
8301231 |
SEAL Ride Plate
|
1 |
|
| 22 |
852962T |
SCREEN Inlet (Design I)
|
1 |
|
| 22 |
856627T1 |
GRATE KIT Inlet (Design II)
|
OPT |
superseded
|
| 23 |
856628T |
SPRING Inlet Grate
|
1 |
|
| 24 |
856629T |
TINES Inlet Grate
|
1 |
superseded
|
| 25 |
856627T |
FRAME Inlet Grate
|
1 |
|
| 26 |
832838 |
SCREW (M6 x 20) (With Nylon Patch)
|
2 |
superseded
|
| 27 |
856732 |
SCREW Special Pivot
|
2 |
disc.
|
| 28 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 29 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 3 |
831976 |
FOAM Exhaust Deflector
|
2 |
disc.
|
| 30 |
832838 |
SCREW (M6 x 20) (With Nylon Patch)
|
2 |
superseded
|
| 31 |
853905T |
PLATE Trim
|
1 |
|
| 32 |
400635 |
NUT (M8)
|
2 |
superseded
|
| 33 |
850047 |
SCREW (M8 x 35)
|
2 |
|
| 34 |
831856A1 |
RIDE PLATE KIT
|
1 |
|
| 35 |
832838 |
SCREW (M6 x 20) (With Nylon Patch)
|
16 |
superseded
|
| 36 |
46765 |
WASHER (.390 x 1.50 x .120) (1.50 x .390 x .120)
|
2 |
|
| 37 |
877799 |
WASHER (.900 x 1.50 x .125) (1.50 x .900 x .125)
|
2 |
|
| 4 |
854309 |
STUD (M10 x 76)
|
6 |
|
| 5 |
826292 |
NUT (M10) Brass/Nickel Plated
|
12 |
|
| 6 |
820640 |
STUD (M10 x 55)
|
4 |
|
| 7 |
76868 |
SEAL Oil
|
2 |
superseded
|
| 8 |
63742T |
BEARING Ball Ball
|
1 |
|
| 9 |
55626 |
RING Snap Snap
|
1 |
|
