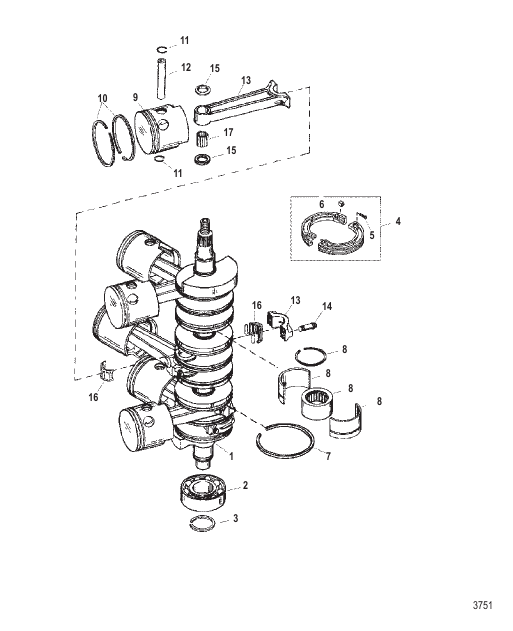

| # | Part Number | Description | Qty | Status |
|---|
| - |
858257T11 |
POWERHEAD ASSEMBLY (Complete With Reed Blocks)
|
1 |
superseded
|
| - |
858257T25 |
POWERHEAD ASSEMBLY (Complete Without Reed Blocks)
|
1 |
disc.
|
| 1 |
834980A1 |
CRANKSHAFT ASSEMBLY
|
1 |
superseded
|
| 10 |
822321A12 |
RING KIT Piston - Standard (12 Rings) (Standard)
|
1 |
|
| 10 |
822321A1 |
RING KIT Piston - .015 Oversize (8 Rings) (.015 Oversize)
|
OPT |
|
| 11 |
52035 |
RING Lock
|
12 |
superseded
|
| 12 |
NSS |
NOT SOLD SEPARATE Piston Pin
|
6 |
|
| 13 |
818141A2 |
CONNECTING ROD KIT
|
6 |
superseded
|
| 14 |
763491 |
SCREW (.312-24 x .875) (Special)
|
12 |
|
| 15 |
812876 |
WASHER (Needle Locating)
|
12 |
superseded
|
| 16 |
17514A2 |
BEARING KIT Roller
|
6 |
superseded
|
| 17 |
822553 |
BEARING Needle (Piston End)
|
174 |
superseded
|
| 2 |
67923T |
BEARING Ball
|
1 |
|
| 3 |
67446 |
RING Retaining
|
1 |
|
| 4 |
14513A2 |
GEAR SEGMENT KIT Drive Drive
|
2 |
superseded
|
| 5 |
813073 |
SCREW (#6-32 x .620) Socket Head
|
2 |
disc.
|
| 6 |
854811 |
NUT Special (#6-32)
|
2 |
|
| 7 |
67377 |
RING Sealing Crankshaft Sealing
|
7 |
superseded
|
| 8 |
16756A6 |
BEARING KIT Crankshaft (Center Main)
|
2 |
|
| 9 |
9738T9 |
PISTON ASSEMBLY Standard (Standard) (Starboard)
|
3 |
|
| 9 |
9738T10 |
PISTON ASSEMBLY .015 Oversize (.015 Oversize) (Starboard)
|
OPT |
disc.
|
| 9 |
9737T9 |
PISTON ASSEMBLY Standard (Standard) (Port)
|
3 |
|
| 9 |
9737A10 |
PISTON ASSEMBLY .015 Oversize (.015 Oversize) (Port)
|
OPT |
disc.
|
