| # | Part Number | Description | Qty | Status |
|---|
| - |
804852A1 |
GASKET/SEAL SET Powerhead (See Gasket/Seal Set - Powerhead Section For Parts Breakdown)
|
1 |
|
| - |
858257T12 |
CYLINDER BLOCK ASSEMBLY
|
1 |
disc.
|
| - |
858257T11 |
POWERHEAD ASSEMBLY (Complete With Reed Blocks)
|
1 |
superseded
|
| - |
858257T25 |
POWERHEAD ASSEMBLY (Complete Without Reed Blocks)
|
1 |
disc.
|

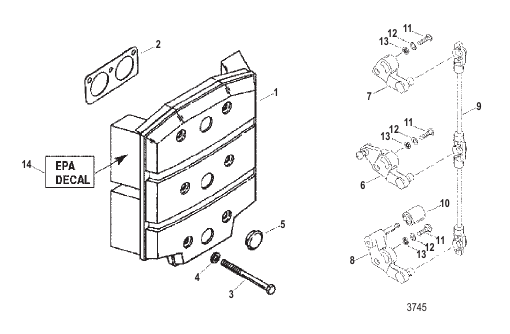

| 1 |
834976 |
ATTENUATOR Sound
|
1 |
|
| 10 |
18178 |
ROLLER
|
1 |
|
| 11 |
15124 |
SCREW (#10-32 x .750)
|
3 |
|
| 12 |
89302 |
WASHER (.203 x .406 x .040)
|
3 |
|
| 13 |
69432 |
LOCKWASHER External (#10)
|
3 |
|
| 14 |
804672A00 |
DECAL EPA Label Information (On The Side Of The Sound Attenuator) [0E369300] THRU [0E373930]
|
1 |
disc.
|
| 14 |
877938A00 |
DECAL EPA Label Information (On The Side Of The Sound Attenuator) [0E373931] THRU [0E384499]
|
1 |
disc.
|
| 14 |
877938A01 |
DECAL EPA Label Information (On The Side Of The Sound Attenuator) [0E384500] THRU [0E407099]
|
1 |
disc.
|
| 14 |
877938A02 |
DECAL EPA Label Information (On The Side Of The Sound Attenuator) [0E407100] THRU [0E414099]
|
1 |
disc.
|
| 14 |
877938A03 |
DECAL EPA Label Information (On The Side Of The Sound Attenuator) [0E414100] THRU [0E420153]
|
1 |
disc.
|
| 14 |
877938A04 |
DECAL EPA Label Information (On The Side Of The Sound Attenuator) [0E420154] THRU [0E426999]
|
1 |
disc.
|
| 14 |
877938A05 |
DECAL EPA Label Information (On The Side Of The Sound Attenuator) [0E427000] THRU [0E433153]
|
1 |
disc.
|
| 2 |
892211 |
GASKET (Attenuator To Carburetor)
|
3 |
|
| 3 |
884891 |
SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel
|
6 |
|
| 4 |
69057 |
WASHER (.281 x .734 x .063)
|
6 |
|
| 5 |
815784 |
CAP
|
3 |
|
| 6 |
828277A1 |
LINKAGE KIT Throttle
|
1 |
disc.
|
| 7 |
NSS |
NOT SOLD SEPARATE Throttle
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Throttle
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Link
|
1 |
|
