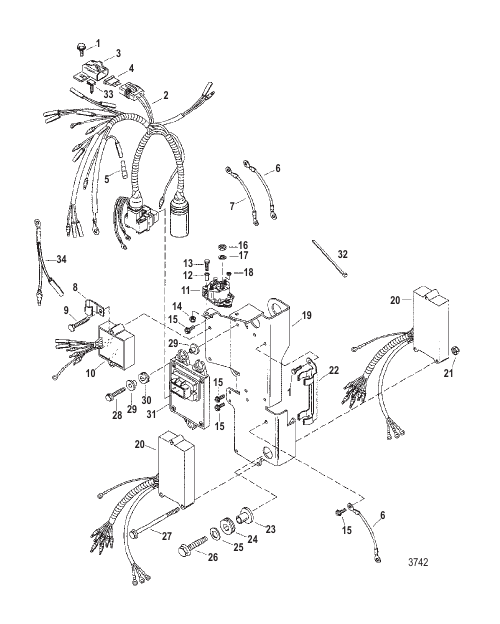

| # | Part Number | Description | Qty | Status |
|---|
| - |
828547T1 |
CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) (Cut As Required)
|
AR |
|
| - |
828547633 |
CONDUIT (.620 Inside Diameter x 3.00 Feet Bulk) (Cut As Required)
|
AR |
|
| 1 |
68513 |
SCREW (#10-32 x .375) Stainless Steel
|
3 |
|
| 10 |
854515T1 |
REGULATOR Voltage (Design I - Stamped 854515)
|
1 |
superseded
|
| 10 |
883072T |
REGULATOR Voltage Voltage (Design II - Stamped 883072 Or 892115001)
|
1 |
superseded
|
| 11 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) Starter
|
1 |
|
| 12 |
818968 |
BUSHING
|
2 |
superseded
|
| 13 |
28667 |
SCREW (.250-20 x 1.00) Stainless Steel
|
2 |
|
| 14 |
814101 |
NUT (.250-20) Stainless Steel
|
2 |
superseded
|
| 15 |
43394 |
SCREW (#10-24 x .500)
|
4 |
disc.
|
| 16 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 17 |
26993 |
LOCKWASHER (.312)
|
2 |
superseded
|
| 18 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 19 |
831991 |
PLATE Ignition Mount
|
1 |
disc.
|
| 2 |
832102A3 |
HARNESS ASSEMBLY Engine
|
1 |
|
| 20 |
18495A32 |
SWITCHBOX ASSEMBLY
|
2 |
|
| 21 |
20110 |
NUT (#10-32)
|
3 |
|
| 22 |
8266241 |
CLAMP
|
1 |
|
| 23 |
8502341 |
BUSHING
|
3 |
|
| 24 |
833155 |
GROMMET
|
3 |
|
| 25 |
49436 |
WASHER
|
3 |
|
| 26 |
60411 |
SCREW (.312-18 x 1.250)
|
3 |
|
| 27 |
814343 |
SCREW (#10-32 x 2.380)
|
3 |
|
| 28 |
819110088 |
SCREW (.250-20 x .875)
|
3 |
disc.
|
| 29 |
8318701 |
BUSHING
|
6 |
|
| 3 |
828054 |
COVER Fuse
|
1 |
|
| 30 |
834985 |
GROMMET
|
3 |
superseded
|
| 31 |
8539554 |
ECM Engine Control Module Turn Key Start [0E369300] THRU [0E420153]
|
1 |
superseded
|
| 31 |
85395505S |
ECM Engine Control Module Turn Key Start [0E420154] THRU [0E433153]
|
1 |
superseded
|
| 32 |
816311T |
TIE STRAP (8.00 Inches)
|
7 |
|
| 33 |
828991 |
CLIP
|
1 |
superseded
|
| 34 |
813524A3 |
CABLE ASSEMBLY
|
1 |
|
| 4 |
812619 |
FUSE Yellow - 20 Ampere
|
1 |
|
| 5 |
13541 |
PLUG Male
|
1 |
|
| 6 |
88807A44 |
CABLE ASSEMBLY (Black - 9.600 Inches)
|
2 |
|
| 7 |
88807A18 |
CABLE ASSEMBLY (Black - 6.250 Inches)
|
1 |
disc.
|
| 8 |
54457 |
J CLIP
|
1 |
|
| 9 |
86885 |
SCREW (.250-20 x 1.500) Stainless Steel
|
2 |
|
