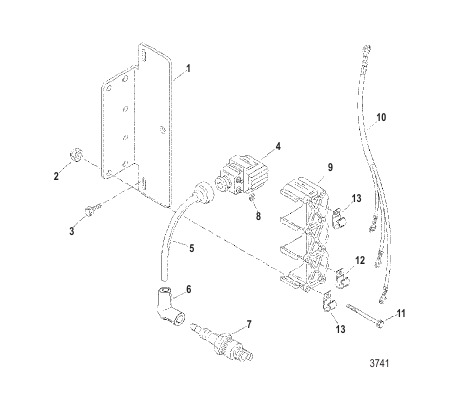

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
858892T |
BRACKET Coil Mounting
|
2 |
disc.
|
| 10 |
824912A7 |
HARNESS ASSEMBLY (Black)
|
2 |
disc.
|
| 11 |
90048 |
SCREW (#10-32 x 2.125)
|
12 |
disc.
|
| 12 |
63153 |
J CLIP (Port)
|
1 |
|
| 13 |
63153 |
J CLIP (Starboard)
|
2 |
|
| 2 |
90078 |
NUT (#10-32)
|
12 |
disc.
|
| 3 |
817505 |
SCREW (.250-20 x .620) Stainless Steel
|
6 |
|
| 4 |
832757A4 |
COIL KIT Ignition
|
6 |
superseded
|
| 5 |
813715A9 |
CABLE KIT Ignition High Tension (Six Cables)
|
1 |
|
| 6 |
63709A1 |
BOOT/TERMINAL KIT High Tension Cables
|
6 |
|
| 7 |
136862 |
SPARK PLUG (NGK # BU8H)
|
6 |
superseded
|
| 7 |
14103568 |
SPARK PLUG (NGK # BUZ8H) (RFI)
|
6 |
superseded
|
| 8 |
45076 |
NUT (#10-32) Brass
|
12 |
|
| 9 |
43542 |
COVER Ignition Coil
|
2 |
disc.
|
