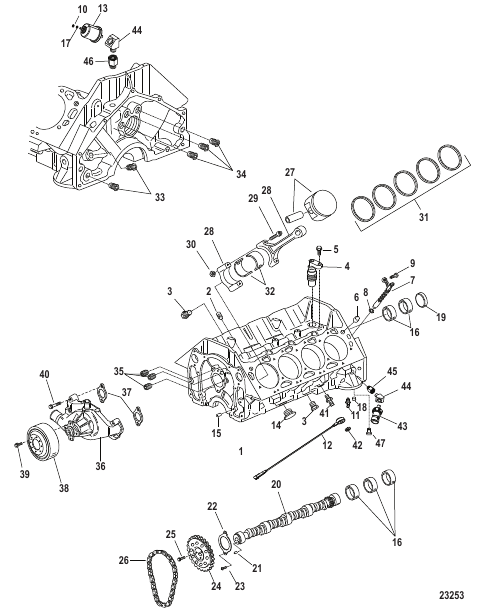

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
NSS |
NOT SOLD SEPARATE Block, Engine Order Longblock Assembly
|
1 |
|
| 10 |
68219 |
NUT (#10-32) Stainless Steel
|
1 |
|
| 11 |
805563 |
CONNECTOR (.500 Inch NPTF To .500 Inch Inverted Flare) Oil Hose
|
1 |
|
| 12 |
878187 |
SENSOR ASSEMBLY Knock
|
2 |
superseded
|
| 13 |
8M0068784 |
OIL PRESSURE SENDER Oil Pressure
|
1 |
|
| 14 |
32561 |
PLUG Pipe - Allen Head (.250-18) Oil Galley
|
1 |
superseded
|
| 14 |
36373 |
PLUG (.375-18) Hex - Steel Pipe, Oil Galley
|
2 |
superseded
|
| 14 |
48341 |
PLUG (.125-27 x .375) Oil Galley
|
AR |
|
| 14 |
881568 |
PLUG Engine Coolant
|
1 |
|
| 14 |
881569 |
PLUG (.250-18 x .54) Engine Coolant
|
1 |
|
| 15 |
843378 |
PIN Dowel
|
1 |
|
| 16 |
85684 |
BEARING SET
|
1 |
|
| 17 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
1 |
|
| 18 |
38407 |
PLUG (.500-14) Pipe
|
1 |
|
| 19 |
94140 |
EXPANSION PLUG Camshaft Bearing Hole
|
1 |
|
| 2 |
48341 |
PLUG (.125-27 x .375) Oil Galley
|
3 |
|
| 20 |
881627 |
CAMSHAFT
|
1 |
superseded
|
| 21 |
843378 |
PIN Dowel Camshaft Sprocket Location
|
1 |
|
| 22 |
845941 |
RETAINER Camshaft
|
1 |
|
| 23 |
881588 |
SCREW
|
1 |
|
| 24 |
892640001 |
SPROCKET Camshaft
|
1 |
|
| 25 |
881570 |
SCREW (M8 x 25 MM)
|
3 |
|
| 26 |
881626 |
CHAIN Camshaft Timing
|
1 |
|
| 27 |
881592002 |
PISTON ASSEMBLY Standard/Floating Design
|
4 |
disc.
|
| 27 |
883515002 |
PISTON ASSEMBLY Standard/Floating Design Port
|
4 |
disc.
|
| 27 |
881596002 |
PISTON ASSEMBLY .030/Floating Design Starboard
|
AR |
disc.
|
| 27 |
881597002 |
PISTON ASSEMBLY .030/Floating Design Port
|
AR |
|
| 28 |
NSS |
NOT SOLD SEPARATE CONNECTING ROD
|
8 |
|
| 29 |
883917 |
SCREW Connecting Rod
|
16 |
|
| 3 |
883919 |
PLUG Coolant Drain
|
1 |
superseded
|
| 30 |
883918 |
NUT Connecting Rod
|
16 |
superseded
|
| 31 |
881601 |
RING KIT Piston Standard
|
8 |
|
| 31 |
881602 |
RING KIT Piston (.030) Oversize
|
8 |
|
| 32 |
8832391 |
BEARING Connecting Rod
|
8 |
disc.
|
| 33 |
881567001 |
PLUG Oil Galley
|
4 |
|
| 34 |
48341 |
PLUG (.125-27 x .375) Oil Galley
|
3 |
|
| 35 |
48341 |
PLUG (.125-27 x .375) Oil Galley
|
AR |
|
| 35 |
36373 |
PLUG (.375-18) Hex - Steel Pipe, Oil Galley
|
2 |
superseded
|
| 35 |
32561 |
PLUG Pipe - Allen Head (.250-18) Oil Galley
|
1 |
superseded
|
| 36 |
883925 |
PUMP Circulating
|
1 |
superseded
|
| 37 |
881603001 |
GASKET Circulating Pump
|
2 |
|
| 38 |
862583 |
PULLEY Circulating Pump
|
1 |
disc.
|
| 39 |
4010716 |
SCREW (M8 x 16)
|
4 |
|
| 4 |
881669 |
DRIVE Oil Pump
|
1 |
superseded
|
| 40 |
881576 |
SCREW (M10 x 65)
|
3 |
|
| 40 |
884036 |
SCREW (M10 x 95)
|
1 |
disc.
|
| 41 |
862915 |
STUD (.250-18/M10 Special) Knock Sensor
|
2 |
|
| 42 |
826292 |
NUT (M10) Brass/Nickel Plated Knock Sensor
|
2 |
|
| 43 |
881879T11 |
SENSOR Pressure (0 - 100 PSI) Oil Pressure
|
1 |
|
| 44 |
29085 |
FITTING Elbow (45 Degree)
|
2 |
superseded
|
| 45 |
64013 |
FITTING (.375 Male To .125 Female) Reducer
|
1 |
|
| 46 |
805059 |
FITTING Reducer Bushing
|
1 |
|
| 47 |
883920 |
VALVE ASSEMBLY Filter
|
1 |
|
| 5 |
881590 |
SCREW (M8 x 20) Oil Pump
|
1 |
|
| 6 |
52190 |
PIN Cylinder Head Locating
|
4 |
|
| 7 |
892617 |
SENSOR Crankshaft Position
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Seal, Crankshaft Position Sensor
|
1 |
|
| 9 |
881595 |
SCREW (M6 x 21) Crankshaft Position Sensor
|
1 |
|
| NS |
8M0086000 |
LONGBLOCK
|
1 |
disc.
|
