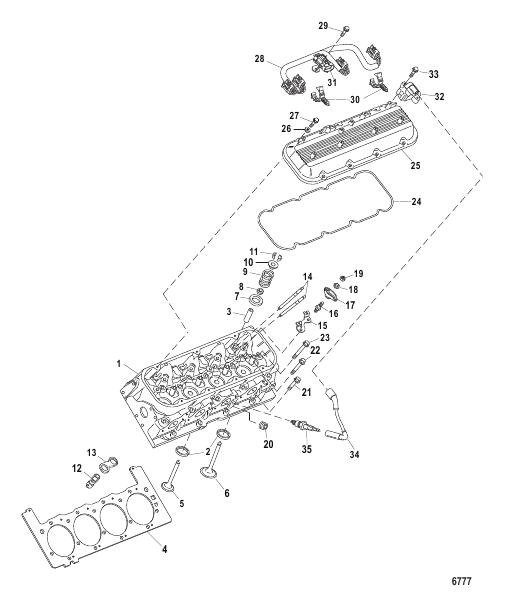

| # | Part Number | Description | Qty | Status |
|---|
| - |
881642A01 |
BOLT KIT
|
2 |
disc.
|
| 1 |
8M0090760 |
CYLINDER HEAD ASSEMBLY Starboard
|
1 |
superseded
|
| 1 |
8M0091709 |
CYLINDER HEAD ASSEMBLY Port
|
1 |
superseded
|
| 10 |
850464 |
CAP Valve Spring
|
8 |
|
| 11 |
54530 |
KEY Valve Stem
|
32 |
|
| 12 |
850467 |
LIFTER Valve
|
16 |
|
| 13 |
845754 |
GUIDE Valve Lifter
|
8 |
|
| 14 |
881682T |
PUSH ROD Intake
|
8 |
|
| 14 |
881683 |
PUSH ROD Exhaust
|
8 |
|
| 15 |
881686 |
GUIDE Rocker Arm
|
8 |
|
| 16 |
881635 |
STUD
|
16 |
|
| 17 |
881687T |
ARM
|
16 |
|
| 18 |
58041 |
BALL
|
16 |
|
| 19 |
801883 |
NUT
|
12 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Seat
|
AR |
|
| 20 |
75983 |
PLUG
|
2 |
|
| 21 |
NSS |
NOT SOLD SEPARATE SCREW, (M10 x 52)
|
8 |
|
| 22 |
NSS |
NOT SOLD SEPARATE SCREW, (M10 x 86)
|
4 |
|
| 23 |
NSS |
NOT SOLD SEPARATE SCREW, (M10 x 103)
|
24 |
|
| 24 |
881622 |
GASKET Cylinder Head Cover
|
2 |
|
| 25 |
891870 |
COVER Cylinder Head
|
2 |
|
| 26 |
881621 |
GASKET
|
14 |
|
| 27 |
881623 |
SCREW (M6 x 1)
|
14 |
|
| 28 |
891886001 |
HARNESS ASSEMBLY Ignition Coil Wiring
|
1 |
superseded
|
| 29 |
881648 |
BOLT (M6 x 13)
|
4 |
superseded
|
| 3 |
NSS |
NOT SOLD SEPARATE Guide, Valve
|
AR |
|
| 30 |
881722 |
CLIP Wiring Harness
|
2 |
superseded
|
| 31 |
NSS |
NOT SOLD SEPARATE Connector-Harness to Harness
|
1 |
|
| 32 |
889925 |
COIL Ignition
|
8 |
superseded
|
| 33 |
881647 |
SCREW
|
16 |
|
| 34 |
881698 |
WIRE KIT (8 Leads) Spark Plug
|
1 |
superseded
|
| 34 |
888740 |
WIRE Individual Spark Plug Use with Cylinders 1, 2, 7 and 8
|
4 |
disc.
|
| 34 |
888741 |
WIRE Individual Spark Plug Use with Cylinders 3, 4, 5 and 6
|
4 |
superseded
|
| 35 |
863622001 |
SPARK PLUG
|
8 |
superseded
|
| 4 |
881631 |
GASKET Cylinder Head (Port)
|
1 |
|
| 4 |
879150064 |
GASKET Cylinder Head (Starboard)
|
1 |
disc.
|
| 5 |
881674 |
VALVE Intake Standard
|
8 |
|
| 5 |
8M0146080 |
VALVE Intake Standard (Black-X Composite)
|
8 |
|
| 5 |
881675 |
VALVE Intake (.003) Oversize
|
AR |
disc.
|
| 5 |
881676 |
VALVE Intake (.015) Oversize
|
AR |
superseded
|
| 5 |
881677 |
VALVE Intake (.030) Oversize
|
AR |
|
| 6 |
891713 |
VALVE Exhaust Standard
|
8 |
superseded
|
| 6 |
8M0146108 |
VALVE Exhaust Standard (Black-X Composite)
|
8 |
|
| 6 |
881679 |
VALVE Exhaust (.003) Oversize
|
AR |
disc.
|
| 6 |
881680 |
VALVE Exhaust (.015) Oversize
|
AR |
|
| 6 |
881681 |
VALVE Exhaust (.030) Oversize
|
AR |
|
| 7 |
850463 |
ROTATOR Valve
|
8 |
|
| 8 |
881637T |
SEAL Valve Stem Oil
|
16 |
|
| 9 |
881672001 |
SPRING Valve
|
16 |
|
| NS |
881720 |
RETAINER 2 Spark Plug Wire
|
AR |
disc.
|
| NS |
883924 |
RETAINER Conduit
|
AR |
|
| NS |
47463 |
EXPANSION PLUG Cylinder Head
|
2 |
|
