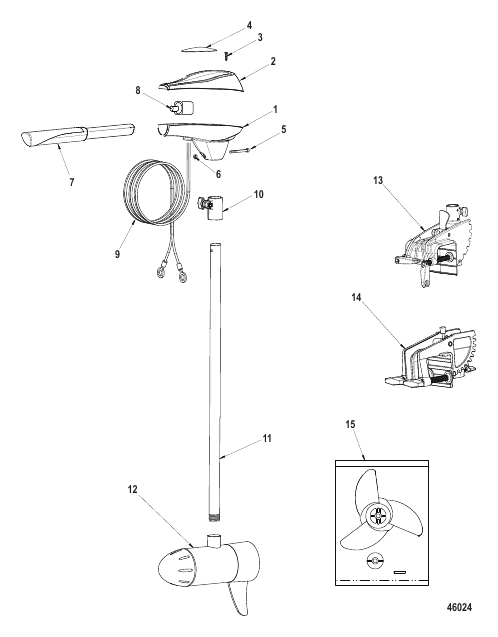

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M4002639 |
COVER KIT 1.00 inch Upper and Lower
|
1 |
disc.
|
| 1 |
8M4002579 |
COVER KIT 1.25 inch, Upper and Lower
|
1 |
disc.
|
| 10 |
8M0058718 |
COLLAR, Depth 1.00 Inch
|
1 |
|
| 10 |
8M4002640 |
COLLAR, Depth 1.25 inch
|
1 |
disc.
|
| 11 |
879364T15 |
COLUMN 36 Inch Aluminum
|
1 |
disc.
|
| 12 |
8M4002643 |
LOWER UNIT ASSEMBLY Freashwater, Black, 30 Pound Thrust
|
1 |
disc.
|
| 12 |
8M4002644 |
LOWER UNIT ASSEMBLY Freashwater, Black, 40 Pound Thrust
|
1 |
disc.
|
| 12 |
8M4002645 |
LOWER UNIT ASSEMBLY Freashwater, Black, 45 Pound Thrust
|
1 |
disc.
|
| 12 |
8M4002646 |
LOWER UNIT ASSEMBLY Freashwater, Black, 55 Pound Thrust
|
1 |
disc.
|
| 13 |
8M4002567 |
MOUNT ASSEMBLY Complete, 09 Transom
|
1 |
superseded
|
| 14 |
8M0059805 |
MOUNT ASSEMBLY Complete, 03 Transom
|
1 |
disc.
|
| 15 |
8M4002641 |
PROPELLER KIT 3 Blade with Wrench 40-55 lb
|
1 |
|
| 15 |
MGA0476B |
PROPELLER KIT 2 blade, 3 inch 30 lb
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE COVER, Upper
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE SCREW
|
4 |
|
| 4 |
NSS |
NOT SOLD SEPARATE DECAL
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE BOLT
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE NUT
|
1 |
|
| 7 |
8M4002638 |
HANDLE ASSEMBLY
|
1 |
disc.
|
| 8 |
8M4002637 |
SWITCH 5 Speed
|
1 |
superseded
|
| 9 |
8M0058715 |
CABLE ASSEMBLY 30#
|
1 |
disc.
|
| 9 |
8M0058717 |
CABLE ASSEMBLY 40, 45, 55#
|
1 |
disc.
|
