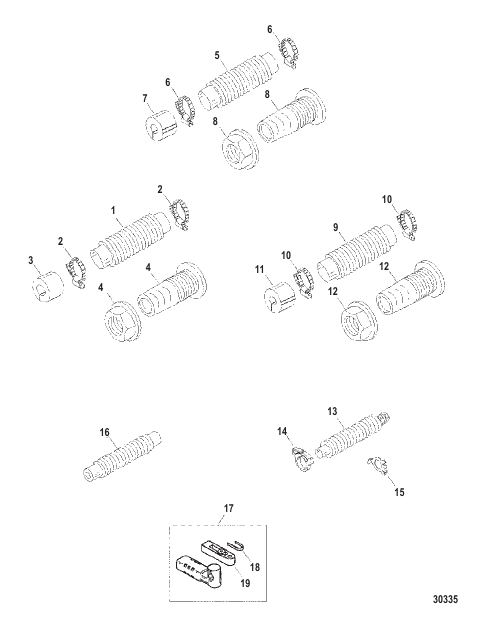

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
850005A2 |
BELLOWS KIT Bulkhead Thru Hull - Inside Transom - NOTE: Used With Shift Cable - Adaptor .500 Diameter Hole
|
OPT |
|
| 10 |
815504616 |
CLAMP Worm Gear
|
2 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Adaptor - .355 Diameter Hole
|
1 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Fitting With Nut - Thru Hull
|
1 |
|
| 13 |
877581A4 |
BELLOWS KIT Steering Cable - Outside Transom
|
1 |
|
| 14 |
415829 |
CLAMP
|
1 |
|
| 15 |
832983 |
TAB WASHER
|
1 |
|
| 16 |
877581A5 |
BELLOWS ASSEMBLY Shift Cable - Outside Transom
|
1 |
|
| 17 |
12505A1 |
ADAPTER KIT Throttle Cables
|
1 |
disc.
|
| 18 |
12506 |
CLIP
|
1 |
superseded
|
| 19 |
12504 |
TERMINAL
|
1 |
superseded
|
| 2 |
815504616 |
CLAMP Worm Gear
|
2 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Adaptor - .500 Diameter Hole
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Fitting With Nut - Thru Hull
|
1 |
|
| 5 |
850697A2 |
BELLOWS KIT Thru Hull - Inside Transom - NOTE: Used With Steering Cable - Adaptor .425 Diameter Hole
|
OPT |
|
| 6 |
815504616 |
CLAMP Worm Gear
|
2 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Adaptor - .425 Diameter Hole
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Fitting With Nut - Thru Hull
|
1 |
|
| 9 |
884216A2 |
BELLOWS KIT Thru Hull - Inside Transom - NOTE: Used With Shift Or Steering Cables .355 Diameter - Adaptor .355 Diameter Hole
|
OPT |
disc.
|
