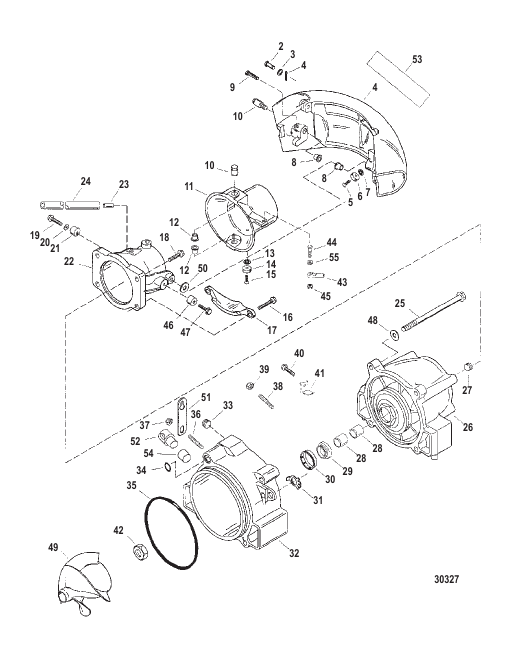

| # | Part Number | Description | Qty | Status |
|---|
| - |
877896A1 |
SEAL/GASKET SET Jet Drive Housing
|
1 |
superseded
|
| - |
859438A2 |
HOUSING KIT Complete Jet Drive - No Impeller
|
1 |
|
| 1 |
878071A1 |
GATE KIT Reverse
|
1 |
|
| 10 |
831922 |
BOLT Special Pivot
|
4 |
|
| 11 |
831241A1 |
RUDDER KIT
|
1 |
|
| 12 |
832048 |
BUSHING Pivot
|
2 |
|
| 13 |
78968 |
LOCKWASHER Internal (.250)
|
1 |
|
| 14 |
8205031 |
ANODE
|
1 |
|
| 15 |
832838 |
SCREW (M6 x 20)
|
1 |
superseded
|
| 16 |
4010845 |
SCREW (M10 x 45) Hex Flange - Stainless Steel
|
2 |
|
| 17 |
856581C |
ANODE With Bushings In Casting
|
1 |
|
| 18 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
2 |
|
| 19 |
4007154 |
SCREW (M8 x 30)
|
1 |
|
| 2 |
68402 |
PIN (.250 x 1.13) Clevis
|
1 |
|
| 20 |
36001 |
WASHER
|
1 |
|
| 21 |
820564 |
STOP Reverse Gate
|
1 |
|
| 22 |
878080A1 |
NOZZLE ASSEMBLY With Pivot Bushings
|
1 |
|
| 23 |
826701 |
FITTING Nozzle
|
1 |
|
| 24 |
877861 |
HOSE (12.250 Inches) Siphon
|
1 |
disc.
|
| 25 |
859436 |
SCREW (M10 x 150)
|
4 |
superseded
|
| 26 |
855257A8 |
STATOR ASSEMBLY
|
1 |
|
| 27 |
73379 |
PLUG (.250-18) Pipe
|
2 |
superseded
|
| 28 |
835473 |
BUSHING Stator Rear
|
2 |
|
| 29 |
14381 |
SEAL
|
1 |
|
| 3 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 30 |
853950 |
PROTECTOR Seal
|
1 |
|
| 31 |
832983 |
TAB WASHER
|
1 |
|
| 32 |
856814A2 |
WEAR RING KIT
|
1 |
|
| 33 |
428611 |
FITTING Pipe - Brass (.750-14)
|
1 |
superseded
|
| 34 |
38101 |
O-RING (.674 x .103)
|
1 |
|
| 35 |
832062 |
O-RING (7.487 x .103)
|
1 |
|
| 36 |
8161948 |
STUD (M6 x 36) - Version I - Top And Bottom Holes
|
2 |
|
| 37 |
8268336 |
NUT (M6) - Version I - Top And Bottom Holes
|
2 |
superseded
|
| 38 |
8161948 |
STUD (M6 x 36) - Version II - Top Hole
|
1 |
|
| 39 |
8268336 |
NUT (M6) - Version II - Top Hole
|
1 |
superseded
|
| 4 |
21071 |
COTTER PIN
|
1 |
superseded
|
| 40 |
4000330 |
SCREW (M6 x 25) - Version II - Bottom Hole
|
1 |
superseded
|
| 41 |
NSS |
NOT SOLD SEPARATE Tab - Special - Version II - Bottom Hole
|
1 |
|
| 42 |
835464 |
NUT (1.250-12) Impeller Shaft
|
1 |
|
| 43 |
809477A1 |
END KIT Swivel
|
1 |
superseded
|
| 44 |
803902A1 |
BOLT AND NUT KIT
|
1 |
superseded
|
| 45 |
56374 |
NUT (.250-20)
|
1 |
superseded
|
| 46 |
856772 |
STOP Non Adjustable
|
1 |
|
| 47 |
4010725 |
SCREW (M8 x 25)
|
1 |
|
| 48 |
34931 |
WASHER (.406 x .734 x .063) Stainless Steel
|
4 |
|
| 49 |
877326T |
IMPELLER 4 Blade - Stainless Steel
|
1 |
|
| 5 |
832838 |
SCREW (M6 x 20)
|
1 |
superseded
|
| 50 |
878072 |
WASHER Special
|
2 |
|
| 51 |
856997T |
LATCH Retainer Shift Cable
|
1 |
|
| 52 |
856998T |
RETAINER Shift Cable
|
1 |
|
| 53 |
875280 |
DECAL Powered By Mercury - Reverse Gate
|
1 |
|
| 54 |
824015 |
CUP Barrel Retainer Shift Cable
|
1 |
|
| 55 |
814806 |
WASHER (.344 x .688 x .065) Stainless Steel
|
1 |
superseded
|
| 6 |
8205031 |
ANODE
|
1 |
|
| 7 |
78968 |
LOCKWASHER Internal (.250)
|
1 |
|
| 8 |
832048 |
BUSHING Pivot
|
2 |
|
| 9 |
821539 |
PIN Trilobe
|
2 |
|
